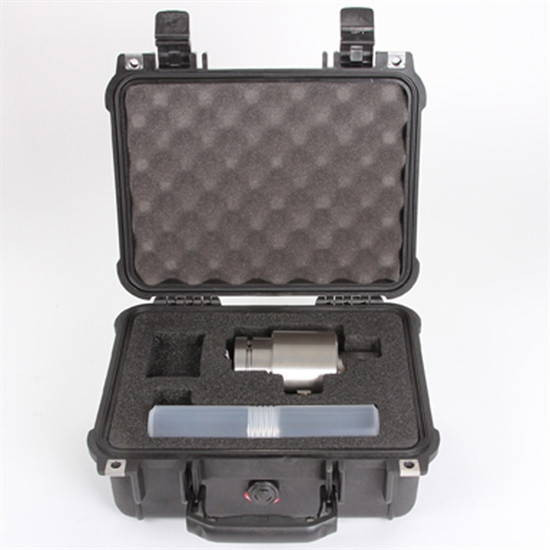

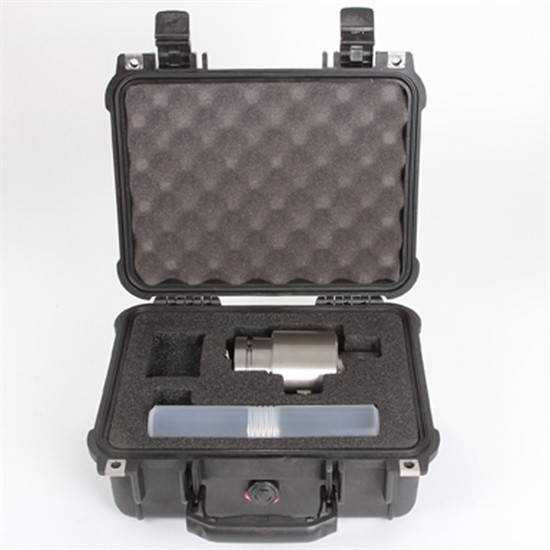

1 1/2" Dr 250 - 2500 Ft Lbs Norbar Smart Static Torque Transduce - 50704.LOG

1 1/2" Dr 250 - 2500 Ft Lbs Norbar Smart Static Torque Transduce - 50704.LOG

The accuracy and quality of the Norbar Static Torque Transducer has made them the first choice of many calibration laboratories throughout the world.

Features

• Robust, heat treated, alloy steel torsion shaft design.
• Designed to ignore non torsional forces.
• Operates in clockwise and anti-clockwise directions.
• Calibrated in clockwise direction as standard. Anti-clockwise calibration provided on request.
• 'SMART' transducers can also be used with many instruments not of Norbar manufacture. However, these will operate as normal ratio calibrated (mV/V) transducers - the 'SMART' data will not be read. For non Norbar instruments or for when a mV/V certificate is required, use part code suffix '.IND'.
• Calibration up to 100,000 N·m with UKAS Certificate.
• Weight: 4.6 Kg
• Temp Range Operating: -10°C to +50°C
• Temp Range Storage: -20°C to +70°C
• Thermal Effect On Span: < +/- 0.03%/°C
• Thermal Effect On Zero: < +/- 0.01%/°C
• Torsional Deflection: < 1°
• Fatigue: > 10 exp 7 cycles
• Maximum Torsion Capacity: 150%
• Connector: 6 Way Mil Spec

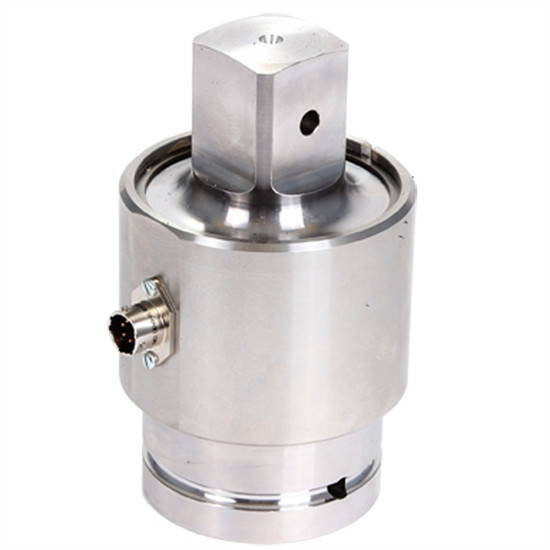

• Drive 1: 1 1/2" Male Square

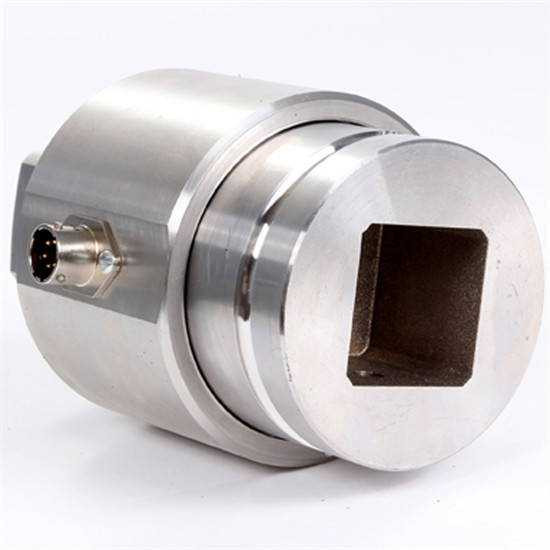

• Drive 2: 1 1/2" Female Square
• Accuracy: ±0.5%
• Operates between: 250.00 - 2500.00 lbf·ft
