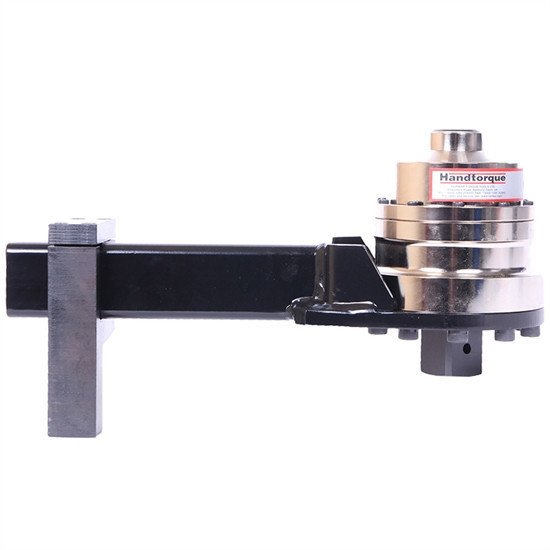

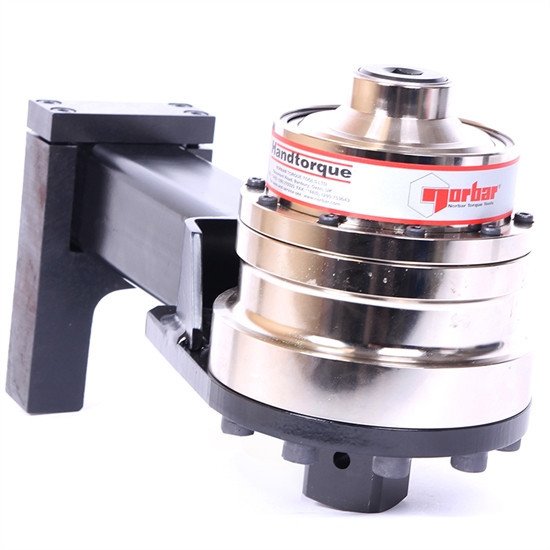

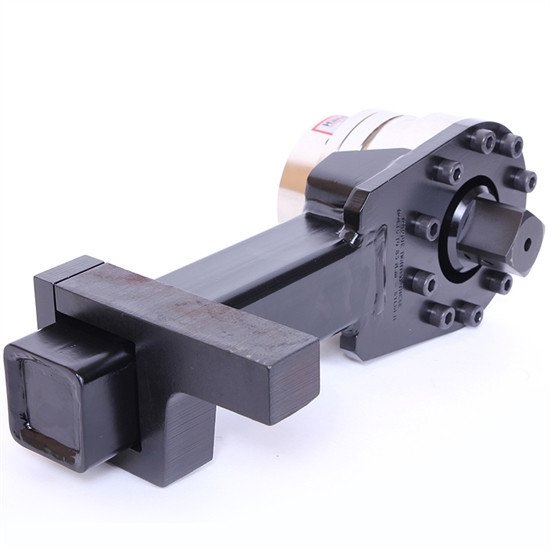

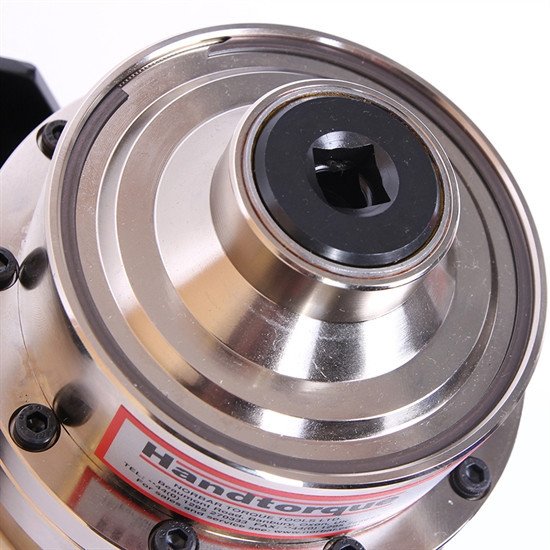

1 1/2" Dr 450 - 4500 Ft Lbs / 600 - 6000 Nm Norbar HT7/25 Hand Torque Standard Series - 16018
Now:$3,662.07
MSRP:$4,024.25
(You save $362.18 )
- SKU:16018
- UPC:5060207567732
- Condition:New
- Drive Size:1 1/2 Inch
Product Description
1 1/2" Dr 450 - 4500 Ft Lbs / 600 - 6000 Nm Norbar HT7/25 Hand Torque Standard Series - 16018
Norbar 'HandTorque' multipliers employ multiple stages of epicyclic gearing to give a wide range of torque outputs and ratios to suit most applications. Ratios quoted are always the torque multiplication ratio, not the velocity ratio as given for some competitor's products. For example, the velocity ratio may be 29.8:1 to give a torque multiplication of 27:1 ±4%.
Features
- Electronic torque transducers can be fitted for precise torque monitoring.
- True torque multiplication guaranteed better than +/-4%.
- High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.
- Anti Wind-Up Ratchet available on models of 25:1 ratio and above.
- Tool Weight: 9.6 Kg
- Multiplication Ratio: 27:1
- Output Square: 1 1/2"
- Input Square: 1/2"
- Velocity Ratio: 29.091:1
- Max Input Speed: 58 revs/min
- Plate Weight: 6.3 Kg
- Plate Torque: 75 N.m
- Accuracy: ±4%
- Operates between: 450.00 - 4500.00 lbf·ft, 600.00 - 6000.00 N·m, 60.00 - 600.00 kgf·m
