- SKU:50599.IND
- UPC:5060922234629
- Condition:New
- Drive Size:1 1/2 Inch
Product Description

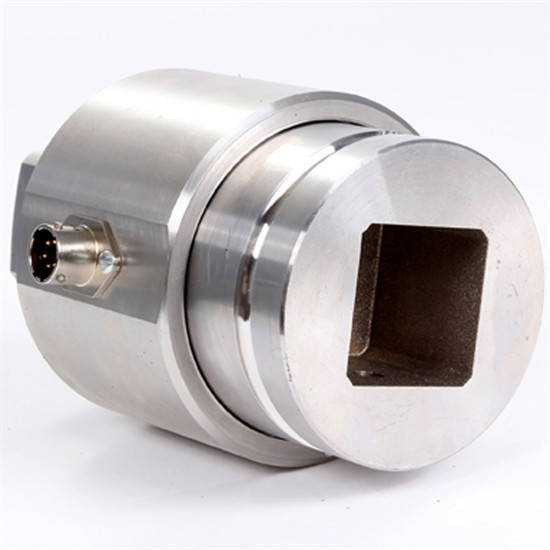

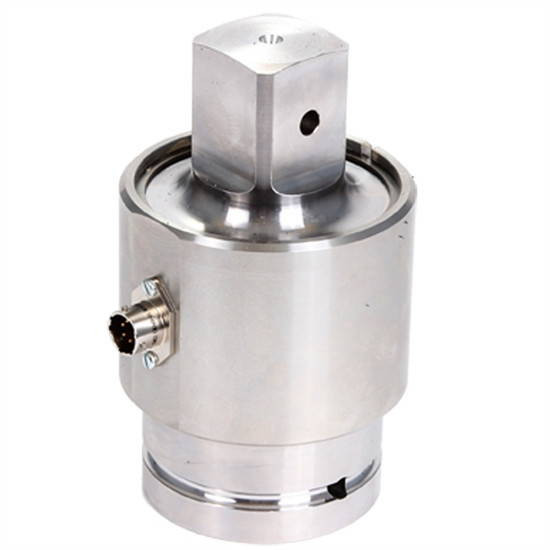

1 1/2" Dr 500 - 5000 Nm Norbar Smart Static Torque Transduce mV/V - 50599.IND
The accuracy and quality of the Norbar Static Torque Transducers has made them the first choice of many calibration laboratories throughout the world.
Features
- Robust, heat treated, alloy steel torsion shaft design.
- Designed to ignore non torsional forces.
- Operates in clockwise and anti-clockwise directions.
- Calibrated in clockwise direction as standard. Anti-clockwise calibration provided on request.
- 'SMART' transducers can also be used with many instruments not of Norbar manufacture. However, these will operate as normal ratio calibrated (mV/V) transducers - the 'SMART' data will not be read. For non Norbar instruments or for when a mV/V certificate is required, use part code suffix '.IND'.
- Calibration up to 100,000 N·m with UKAS Certificate.
- Weight: 4.6 Kg
- Temp Range Operating: -10°C to +50°C
- Temp Range Storage: -20°C to +70°C
- Thermal Effect On Span: < +/- 0.03%/°C
- Thermal Effect On Zero: < +/- 0.01%/°C
- Torsional Deflection: < 1°
- Fatigue: > 10 exp 7 cycles
- Maximum Torsion Capacity: 150%
- Connector: 6 Way Mil Spec
- Drive 1: 1 1/2" Male Square
- Drive 2: 1 1/2" Female Square
- Operates between: 500.00 - 5000.00 N·m
