1/2" Dr 6-295 Ft Lbs / 8-400 Nm Norbar Pro Test 400 Digital Torque Tester - 43219
1/2" Dr 6-295 Ft Lbs / 8-400 Nm Norbar Pro Test 400 Digital Torque Tester - 43219
1/2" Dr 6-295 Ft Lbs / 8-400 Nm Norbar Pro Test 400 Digital Torque Tester - 43219
1/2" Dr 6-295 Ft Lbs / 8-400 Nm Norbar Pro Test 400 Digital Torque Tester - 43219

1/2" Dr 6-295 Ft Lbs / 8-400 Nm Norbar Pro Test 400 Digital Torque Tester - 43219

Now:$3,876.51
MSRP:$4,102.12
(You save $225.61 )
  • SKU:43219
  • UPC:5060922231307
  • Condition:New
  • Drive Size:1/2 Inch
  • Range Ft Lbs:6 - 295
  • Range In Lbs:70 - 3540
  • Range Nm:8 - 400
  • Accuracy:1%
Product Description

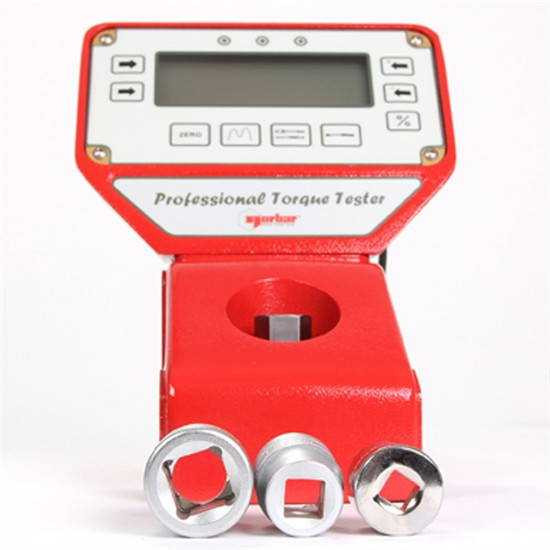

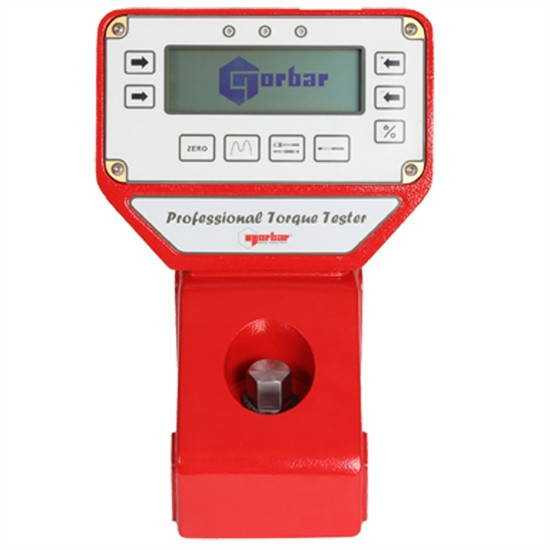

The Norbar 43219 Pro Test 400 Torque Tester - Series 2 can test in an English range of 6 - 295 Ft Lbs and 70 - 3540 In lbs or Metric range of 8 - 400 Nm.  The Norbar Pro-Test 400 is an accurate, highly specified and easy to operate instrument for testing and calibrating all types of torque wrench and is considered the most comprehensive torque wrench tester on the market today.

Norbar Pro Test 400 Features:

  • Guaranteed classification to BS7882:2008, Class 1 or better over the primary calibration range (20% to 100% of full scale), Class 2 or better over the secondary calibration range (lowest calibrated value to 20% of full scale). Class 1 equates to +/-0.5% of reading.
  • Three essential operating modes allow this torque tester calibration equipment to be used with all torque wrench types: 'Track' displays the live value, 'Peak Memory' records the highest value and 'First Peak Memory' records the first peak of torque (for click type torque wrenches). Both memory modes can be used with manual or automatic reset.
  • Large back lit display is easily visible from a distance and in poor light.
  • All common units of torque measurement are included with the torque tester calibration equipment.
  • User can select the language they wish to work in (most European languages are included).
  • Transducer can be mounted for torque wrench operation in the horizontal or vertical plane.
  • RS-232-C is included for the output of reading to a printer, PC, data capture unit, SPC software etc.
  • Optional mounting plate, Part Code 62198, allows the pro torque test machine to be wall mounted. All user settable parameters are menu selectable from the front panel.
  • As standard, all transducers are calibrated in a clockwise direction. For additional anti clockwise direction order Part No. PROTEST.CCW.

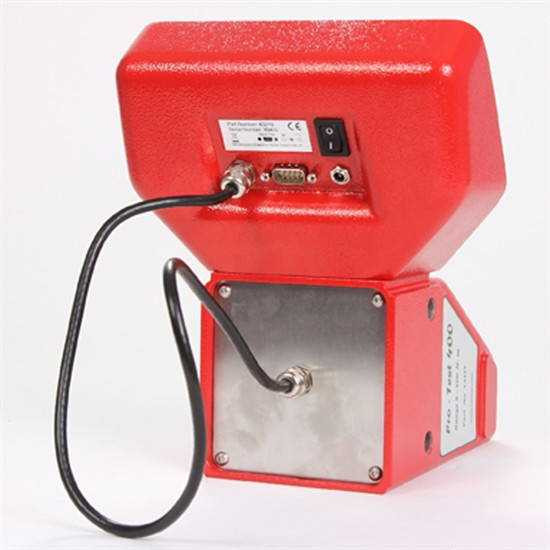

  • Display and Transducer are hard-wired together with a 600mm cable.
  • Pictorial 'Mode' selection incorporated for ease of use.
  • The Norbar Pro Test 400 is supplied in a robust plastic case with a data transfer lead to connect to a PC or printer.
  • Weight: 6.4 Kg
  • Operational Range: 0 - 400 N.m
  • Maximum Resolution: 1 in 9999
  • Female Drive: 1/2" & 3/4"
  • Transducer Overload Capacity: 150% of Calibration
  • Temp Range - Operating: 5°C to 40°C
  • Temp Range - Storage: -20°C to +70°C

Made In England.
