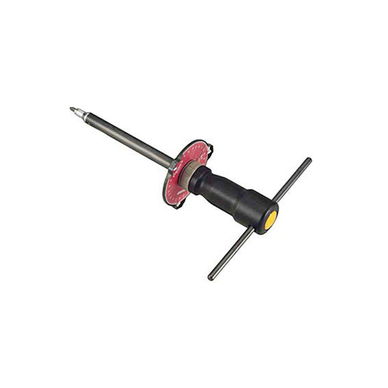

1/4" 1 - 10 In Lbs Tohnichi Dial Torque Driver - 10FTD2-A-S
1/4" 1 - 10 In Lbs Tohnichi Dial Torque Driver - 10FTD2-A-S
1/4" 1 - 10 In Lbs Tohnichi Dial Torque Driver - 10FTD2-A-S

1/4" 1 - 10 In Lbs Tohnichi Dial Torque Driver - 10FTD2-A-S

Now:$276.75
MSRP:$309.44
(You save $32.69 )
  • SKU:10FTD2-A-S
  • Condition:New
  • Range In Lbs:1 - 10
  • Drive Size:1/4 Inch
  • Accuracy:3%
Product Description


The Tohnichi 10FTD2-A-S dial torque screwdriver accepts universal 1/4-inch drive bits and has an English range of 1-10 In Lbs.

Features

  • Direct reading torque screwdriver ideal for inspection.
  • Accuracy ± 3%
  • Bi-Directional Loading
  • Brightly Colored Contrasting Scale for Easy Reading
  • Protected Main Pointer
    • Easily Adjust Zero Point with Press and Rotate Scale Plate
  • Memory pointer captures peak torque.
  • Black Resin Comfort Grip
  • Accepts standard 1/4" hex root size bits (sold separately).
  • FTD8N2-S and FTD16N2-S have 1/4 sq drive and come with Auxiliary tightening tool and bits as standard accessory.
  • Includes Certificate of Calibration
  • Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type I Class D.

Specifications

Accuracy ± 3%
METRIC MODEL 10FTD2-S
TORQUE RANGE
[in lbs]
MIN.~MAX. 1~10
GRAD. 0.2
APPLICABLE SCREW SMALL SCREW M3(M3.5
TAPPING SCREW M2.5, M3
DIMENSION
[mm]
OVERALL LENGTH L' 272
GRIP D1 38
BODY D2 90
D3 13
D4 11
L1 157
L2 115
WEIGHT [kg] 0.37
SCALE PLATE COLOR BLUE

product dimensions

Made in Japan
