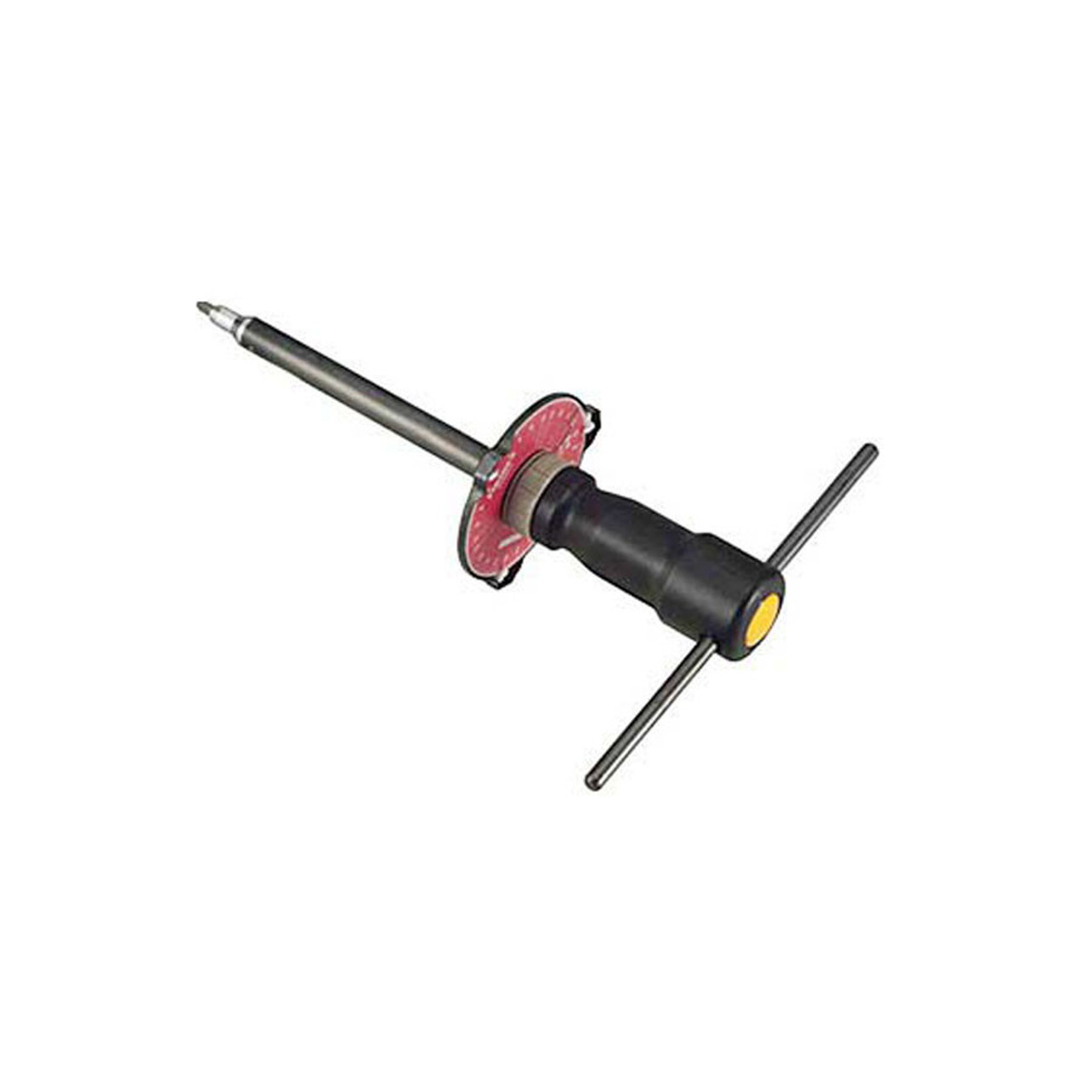

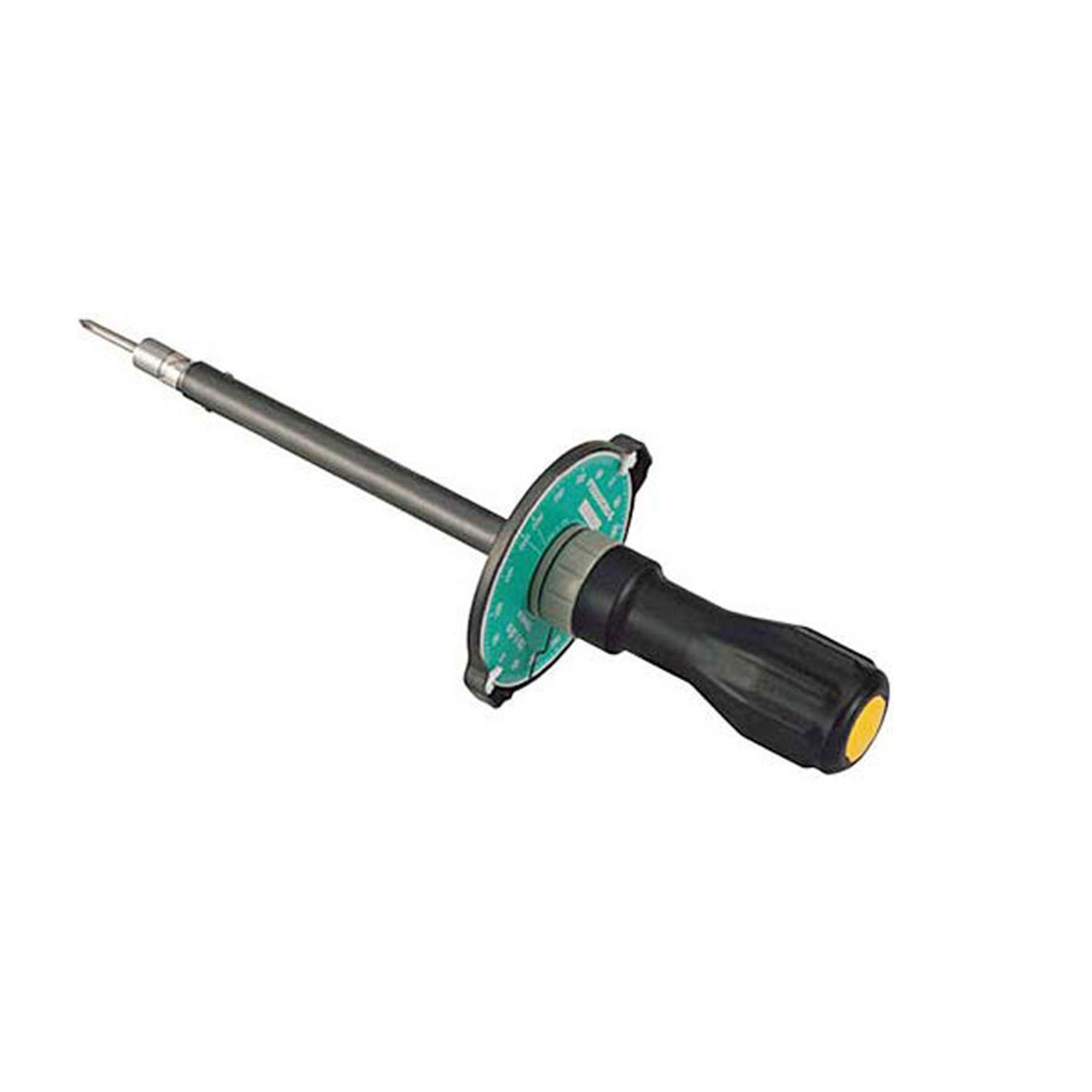

1/4" Dr .3 - 2 cNm Tohnichi Dial Torque Driver - FTD2CN-S
Now:$222.63
MSRP:$248.89
(You save $26.26 )
- SKU:FTD2CN-S
- Condition:New
- Drive Size:1/4 Inch
- Range cNm:.3 - 2
- Accuracy:3%
- Made In:Japan
Product Description
The FTD2CN-S Tohnichi Dial Torque Gauge Screwdriver accepts universal 1/4 Inch drive bits and has an English range of .3 - 2 cNm.
Features
- Direct reading torque screwdriver ideal for inspection.
- Accuracy ± 3%
- Bi-Directional Loading
- Brightly Colored Contrasting Scale for Easy Reading
- Protected Main Pointer
- Easily Adjust Zero Point with Press and Rotate Scale Plate
- Memory pointer captures peak torque.
- Black Resin Comfort Grip
- Accepts standard 1/4" hex root size bits (sold separately).
- FTD8N2-S and FTD16N2-S have 1/4 sq drive and come with Auxiliary tightening tool and bits as standard accessory.

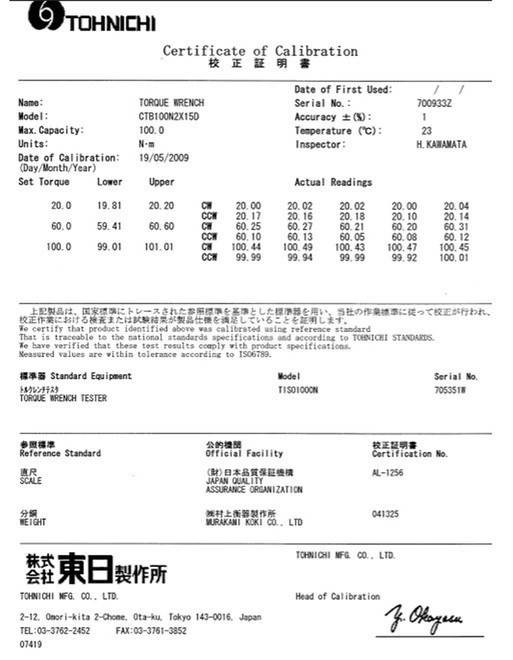

- Includes Certificate of Calibration
- Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type I Class D.
- Includes Tohnichi Factory Certificate of Calibration
- (NIST Traceable Certificate of Calibration offered for additional fee)
Specifications
| Accuracy ± 3% | |||||||||||||
| S.I. MODEL | FTD2CN-S | ||||||||||||
| TORQUE RANGE [cN . m] | MIN.~MAX. | cN . m 0.3~2 | |||||||||||
| GRAD. | cN . m 0.05 | ||||||||||||
| APPLICABLE SCREW | SMALL SCREW | M1 | |||||||||||
| TAPPING SCREW | M1 ( | ||||||||||||
| DIMENSION [mm] | OVERALL LENGTH | L' | 152 | ||||||||||
| GRIP | D1 | 20 | |||||||||||
| BODY | D2 | 90 | |||||||||||
| D3 | 6 | ||||||||||||
| D4 | 9 | ||||||||||||
| L1 | 85 | ||||||||||||
| L2 | 67 | ||||||||||||
| WEIGHT [kg] | 0.14 | ||||||||||||
| SCALE PLATE COLOR | RED (VERMILLION) | ||||||||||||
Made in Japan
