1/4" Dr 30 - 200 cNm Tohnichi Dial Torque Driver - FTD200CN2-S
Now:$267.41
MSRP:$305.61
(You save $38.20 )
- SKU:FTD200CN2-S
- Condition:New
- Drive Size:1/4 Inch
- Range cNm:30 - 200
- Accuracy:3%
- Made In:Japan
Product Description

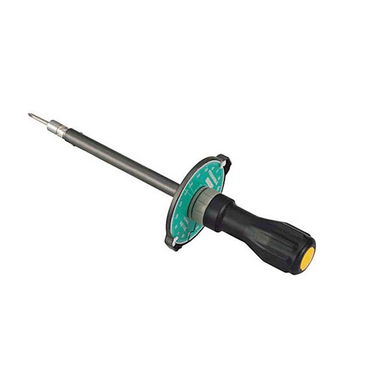

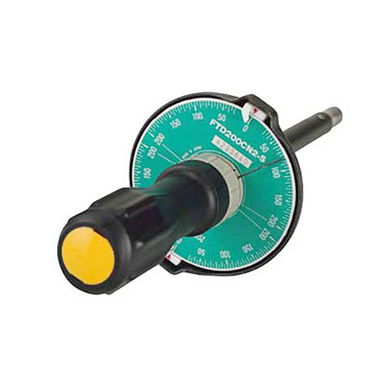

The FTD200CN2-S Tohnichi Dial Torque Drive accepts universal 1/4 Inch drive bits and has an English range of 30 - 200 In Lbs.
Features
- Direct reading torque screwdriver ideal for inspection.
- Accuracy ± 3%
- Bi-Directional Loading
- Brightly Colored Contrasting Scale for Easy Reading
- Protected Main Pointer
- Easily Adjust Zero Point with Press and Rotate Scale Plate
- Memory pointer captures peak torque.
- Black Resin Comfort Grip
- Accepts standard 1/4" hex root size bits (sold separately).
- FTD8N2-S and FTD16N2-S have 1/4 sq drive and come with Auxiliary tightening tool and bits as standard accessory.
- Includes Certificate of Calibration
- Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type I Class D.
Specifications
| Accuracy ± 3% | |||||||||||||
| S.I. MODEL | FTD200CN2-S | ||||||||||||
| TORQUE RANGE [cN . m] | MIN.~MAX. | 30~200 | |||||||||||
| GRAD. | 5 | ||||||||||||
| APPLICABLE SCREW | SMALL SCREW | ) M4 | |||||||||||
| TAPPING SCREW | (M3.5) | ||||||||||||
| DIMENSION [mm] | OVERALL LENGTH | L' | 272 | ||||||||||
| GRIP | D1 | 38 | |||||||||||
| BODY | D2 | 90 | |||||||||||
| D3 | 13 | ||||||||||||
| D4 | 11 | ||||||||||||
| L1 | 157 | ||||||||||||
| L2 | 115 | ||||||||||||
| WEIGHT [kg] | 0.37 | ||||||||||||
| SCALE PLATE COLOR | GREEN | ||||||||||||
Made in Japan
