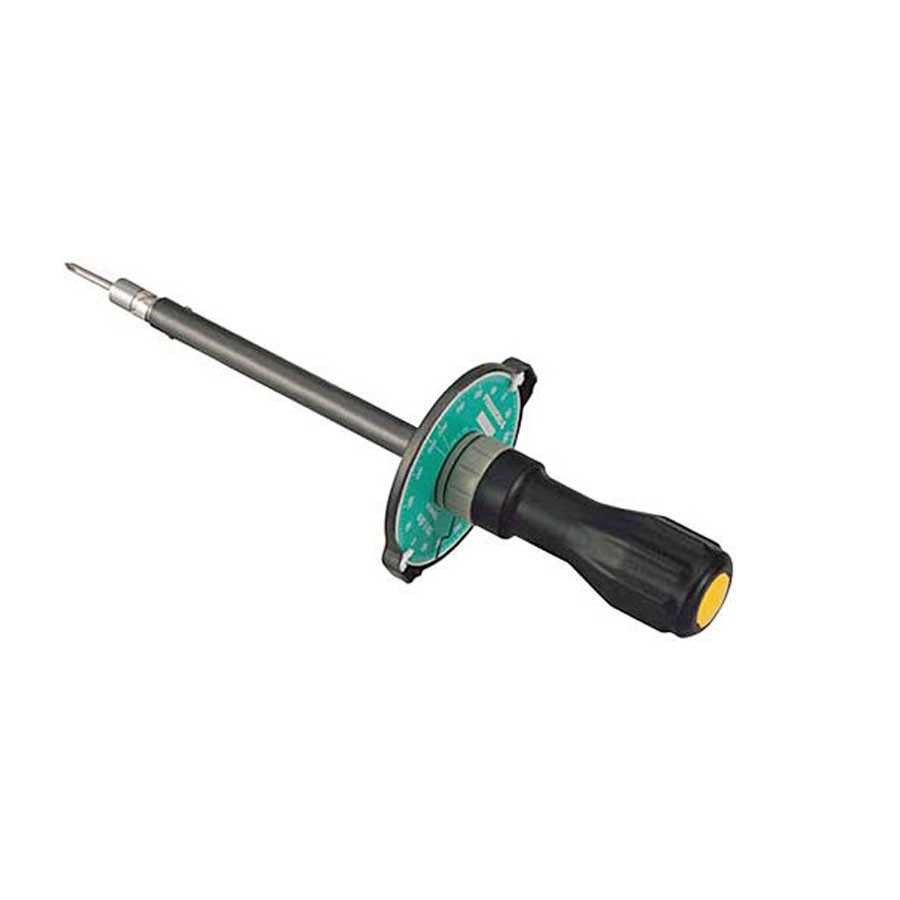

1/4" Dr 50 - 400 cNm Tohnichi Dial Torque Driver - FTD400CN2-S
Now:$289.90
MSRP:$324.13
(You save $34.23 )
- SKU:FTD400CN2-S
- Condition:New
- Drive Size:1/4 Inch
- Range cNm:50 - 400
- Accuracy:3%
- Made In:Japan
Product Description
The FTD400CN2-S Tohnichi Dial Torque Drive accepts universal 1/4 Inch drive bits and has an English range of 50 - 400 In Lbs.
Features
- Direct reading torque screwdriver ideal for inspection.
- Accuracy ± 3%
- Bi-Directional Loading
- Brightly Colored Contrasting Scale for Easy Reading
- Protected Main Pointer
- Easily Adjust Zero Point with Press and Rotate Scale Plate
- Memory pointer captures peak torque.
- Black Resin Comfort Grip
- Accepts standard 1/4" hex root size bits (sold separately).
- FTD8N2-S and FTD16N2-S have 1/4 sq drive and come with Auxiliary tightening tool and bits as standard accessory.
- Includes Certificate of Calibration
- Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type I Class D.
Specifications
Accuracy ± 3% | |||||||||||||
S.I. MODEL | FTD400CN2-S | ||||||||||||
TORQUE RANGE [cN . m] | MIN.~MAX. | 50~400 | |||||||||||
GRAD. | 10 | ||||||||||||
APPLICABLE SCREW | SMALL SCREW | M5 | |||||||||||
TAPPING SCREW | M4 | ||||||||||||
DIMENSION [mm] | OVERALL LENGTH | L' | 272 | ||||||||||
GRIP | D1 | 38 | |||||||||||
BODY | D2 | 90 | |||||||||||
D3 | 13 | ||||||||||||
D4 | 11 | ||||||||||||
L1 | 157 | ||||||||||||
L2 | 115 | ||||||||||||
WEIGHT [kg] | 0.37 | ||||||||||||
SCALE PLATE COLOR | PURPLE |
Made in Japan
