1/4" Hex 100 - 500 cNm Tohnichi Slip Type Adjustable Torque Driver - RTD500CN
Now:$235.15
MSRP:$250.05
(You save $14.90 )
- SKU:RTD500CN
- Condition:New
- Drive Size:1/4 Inch
- Range cNm:100 - 500
- Length:6.10"
- Weight:0.32 Kg
- Accuracy:3%
- Made In:Japan
Product Description

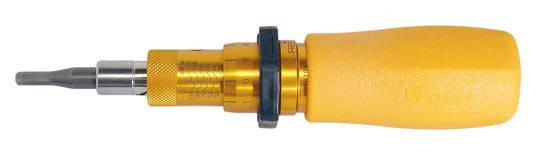

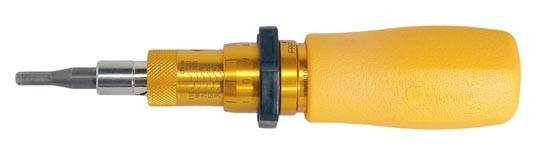

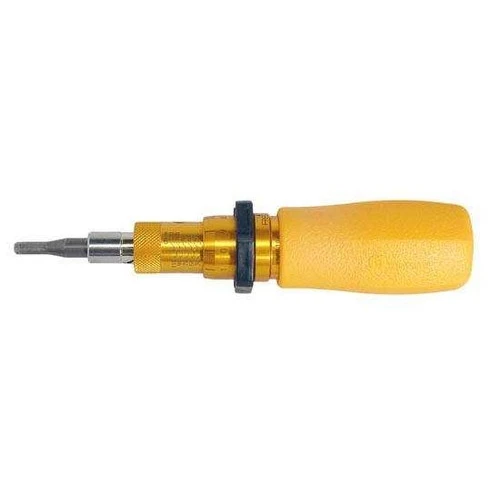

The Tohnichi RTD500CN 100-500 cNm Adjustable Torque Driver
Used for any tightening operation such as mass production assembly and maintenance. The rotary slip clutch reduces the possibility of over-torque. Once torque set is achieved, even if more force is applied, the tool ratchets and does not add additional torque.
Tohnichi RTD500CN Features:
- Adjustable torque setting by twisting shaft with main and supplementary scales
- Models are available in SI, Metric or English units of measure --one unit of measure on tool
- Lock ring holds selected torque value in place
- For Clockwise tightening only
- Click alerts user that torque set has been achieved
- Rotary slip mechanism prevents over torque by ratcheting after click
- Accuracy +/-3% of indicated value
- Mid range models have removable colored resin grip
- Large models includes hook to assist with turning shaft to set tool for higher values.
- Accepts 1/4 hex bits (not included) See Accessories tab above
- Includes Certificate of Calibration (NIST Traceable Cert offered for additional fee)
| MODEL | TORQUE RANGE | Dimensions [mm] | Weight Approx. | Accessories | |||||||||
| Overall Length | Grip | Body | |||||||||||
| S.I. | min.-max. | Graduation | L' | D1 | D2 | D3 | D4 | L1 | L2 | kg | Removeable Resin Grip | Handle Bar | Hook Spanner |
| RTD500CN | cN·m 100-500 | cN·m 5 | 155 | 33 | 26 | 11 | 41 | 24 | 129~141 | 0.32 | N/A | Option | Standard |
Note:
- This series accepts standard 6.35 (1/4) hex bits, sold separately.
Made In Japan
