1/4" Hex 60 - 260 cNm Tohnichi Slip Type Adjustable Torque Driver - RTD260CN
Now:$181.31
MSRP:$207.22
(You save $25.90 )
- SKU:RTD260CN
- Condition:New
- Driver Size:1/4 Inch Female Hex
- Metric Range:60 - 260 cNm
- Length:5.90"
- Weight:0.27 Kg
- Scale:cNm
Product Description
The Tohnichi Torque Driver - RTD260CN
Used for any tightening operation such as mass production assembly and maintenance. The rotary slip clutch reduces the possibility of over-torque. Once torque set is achieved, even if more force is applied, the tool ratchets and does not add additional torque.
Features:
- Adjustable torque setting by twisting shaft with main and supplementary scales
- Models are available in SI, Metric or English units of measure --one unit of measure on tool
- Lock ring holds selected torque value in place
- For Clockwise tightening only
- Click alerts user that torque set has been achieved
- Rotary slip mechanism prevents over torque by ratcheting after click
- Accuracy +/-3% of indicated value
- Mid range models have removable colored resin grip
- Large models includes hook to assist with turning shaft to set tool for higher values.
- Accepts 1/4 hex bits (not included) See Accessories tab above

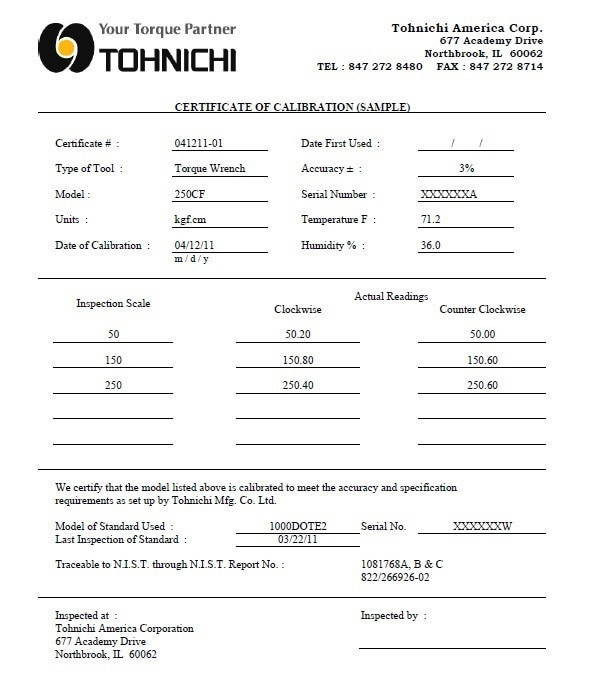

- Includes Tohnichi Factory Certificate of Calibration
- (NIST Traceable Certificate of Calibration offered for additional fee)
| MODEL | TORQUE RANGE | Dimensions [mm] | Weight Approx. | Accessories | |||||||||
| Overall Length | Grip | Body | |||||||||||
| S.I. | min.-max. | Graduation | L' | D1 | D2 | D3 | D4 | L1 | L2 | kg | Removable Resin Grip | Handle Bar | Hook Spanner |
| RTD260CN | cN·m 60-260 | cN·m 2 | 150 | 44 | 23 | 11 | 37.5 | 24 | 113.8~123.8 | 0.27 | N/A | - | Standard |
Note:
- This series accepts standard 6.35 (1/4) hex bits, sold separately.
Made In Japan
