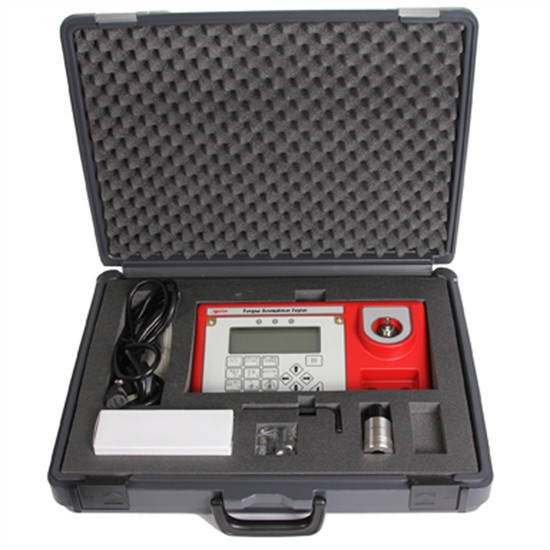

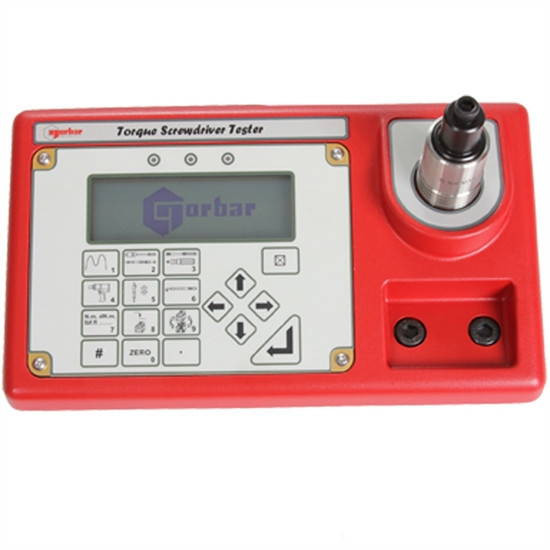

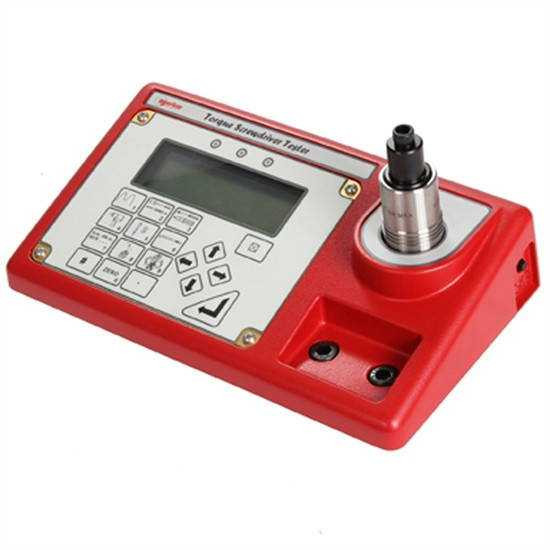

1/4" Hex Dr 5.7-283 In Oz / 0-2 Nm Norbar TST 2 Digital Torque Tester - 43212
- SKU:43212
- UPC:5060922231253
- Condition:New
- Drive Size:1/4 Inch
- Range In Oz:5.7 - 283
- Range In Lbs:.4 - 20
- Range Nm:0 - 2
- Feature:Works with pneumatic & electronic torque tools.
- Accuracy:0.5%
Product Description

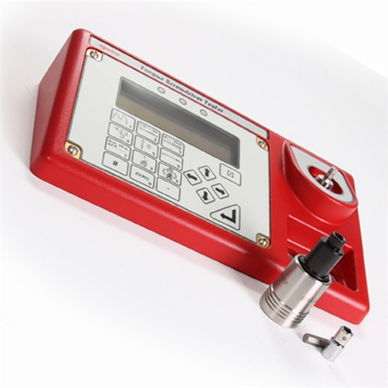

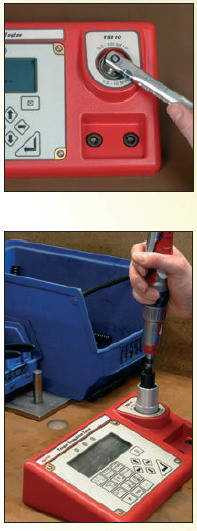

The Norbar 43212 Digital Torque Tester has a 1/4" Hex Drive and an English Testing Range of .4-20 In Lbs & 5.7-283 In Oz and Metric Testing Range of 0-2 Nm. The TST combines simplicity with up to date technology to provide a high quality instrument for the testing and calibration of low capacity torque tools. Featuring an internal transducer complete with Rundown Fixture, the TST has a system accuracy over its Primary range (+/-0.5% of reading from 20% to 100% of full scale).

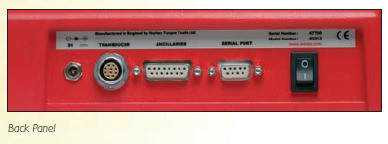

What makes the TST genuinely versatile is the interface for an external transducer. This interface, accessed by a 2 way switch in the TST, allows the connection of any transducer from Norbar's "SMART" range and most mV/V calibrated transducers from Norbar or other manufacturers. The Series 2 products bring a number of enhancements over the original versions. Most importantly, the increase in display resolution results in a significantly improved instrument accuracy. True analog output and continuous RS 232 makes the instrument suitable for a wide range of process control and monitoring applications.
Norbar 43212 Digital Torque Tester Features:
- Pictorial display panel for easy mode selection.
- Limit Detection with low, pass and fail indication. Up to 8 target values can be set.
- Pulse count feature in Impulse mode and Clutch Tool mode.
- "SMART" intelligence for transducer recognition.
- Memory for calibration details of 20 non-"SMART" mV/V calibrated transducers.
- User selectable frequency response for each mode of operation.
- All user selectable features have password protection. The instrument can be issued to users with only the required modes of operation and units of measure enabled. This feature can virtually eliminate operator induced errors.
- Operation from fast charge internal battery pack (maximum time of 3 hours 20 minutes for full charge) or a.c. supply (90 to 264 Volts).
- Analogue output allows the instrument to be used as part of a process control system for example, shutting off a power tool at the desired torque.

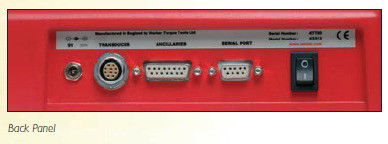

- RS-232-C serial data interface for connection to a printer or PC. Continuous RS 232 output when used in track mode (up to 11 readings per sec.)
Made In England.
