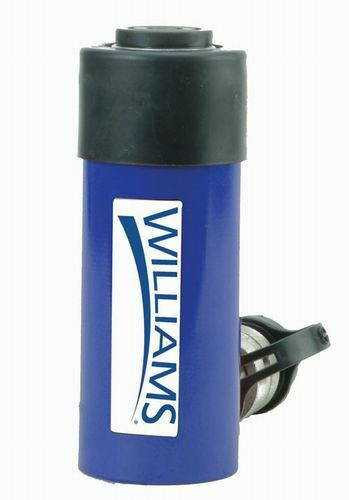

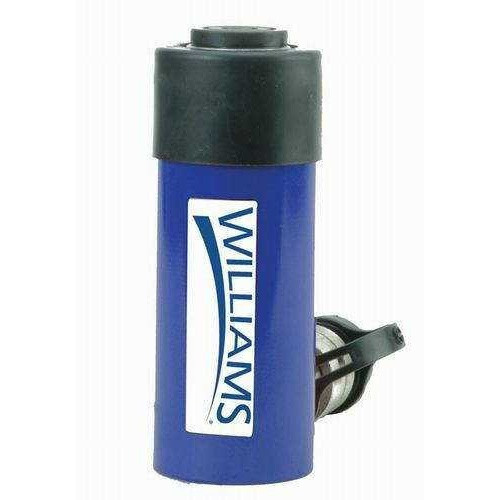

2.01" Stroke Williams 10T Single Acting Cylinder - 6C10T02

The 6C10T02 2.01" Stroke Williams 10T Single Acting Cylinder - 6C10T02 comes with the Williams Industrial Brands Limited lifetime warranty.

Features

• Internal plunger threads
• Snap in grooved saddles
• Rod wiper seals out dirt and contamination
• Collar fi xture threads
• Two base mounting holes on most models
• High strength steel construction from gun drilled solid bar
• High fl ow 3/8" NPTF couplers
• Collar thread protector
• One piece high grade alloy bearing for side load protection and long life
• Polyurethane cup seal provides optimum performance
• Industrial hard chrome plated ram helps prevent rust and corrosion
• Solid steel cylinder body
• Heavy duty return spring provides quicker retraction
• Ideal for lifting and pressing
• Maximum working pressure: 10,000 psi / 700 bar
• Country of Origin : Taiwan
• Cylinder Capacity (tons) : 10
• Stroke (in) : 2.01
• Cylinder Effective Area (in2) : 2.24
• Pressure at Capacity (psi) : 8,930
• Oil Capacity (in3) : 4.50
• Collapsed Height A (in) : 4.84
• Extended Height B (in) : 6.85
• Cylinder Bore Dia. C (in) : 1.69
• Outside Dia. D (in) : 2.26
• Plunger Dia. E (in) : 1.49
• Saddle Dia. F (in) : 1.38
• Base to Inlet Port (in) : 0.77
• Collar Thread (in) : 2 1/4 -14
• Collar Thread Length (in) : 1.30
• Plunger Internal Thread (in) : 1"-8UNC
• Plunger Thread Length (in) : 0.279
• Base Mounting Hole Bolt Circle (in) : 1.56
• Base Mounting Hole Thread (in) : 5/16" - 18UNC
• Base Mounting Hole Thread Depth (in) : 0.55
