- SKU:ATG18Z-S
- Condition:New
- Range In Oz:2 - 18
- Accuracy:2%
- Drive Size:3-jaw chuck
Product Description

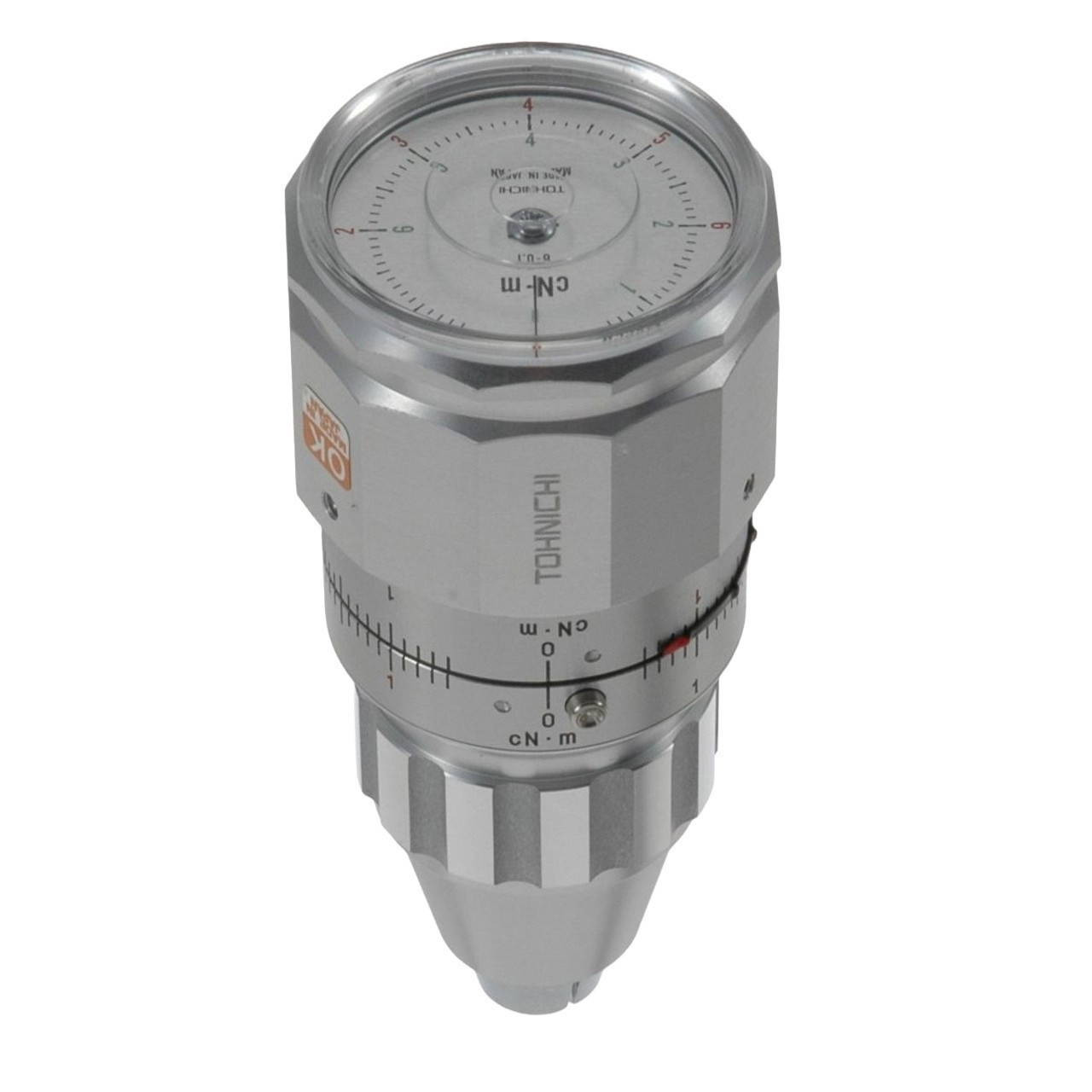

2-18 In Oz Tohnichi ATG / BTG Torque Gauge - ATG18Z-S
Features
- Torque gauge series designed to measure low torque from 0.5mN • m to 150cN • m
- Two Body Sizes: ATG smaller and BTG larger coordinate with torque ranges.
- Bi-directional operation handheld type torque gauge.
- Aluminum Threaded keyless 3-jaw chuck is standard. (order replacement #00T45502B for ATG & #00T04282A for BTG)
- For ATG: plastic chuck #322 or steel chuck #321 are also available as optional accessories
- Push lock button holds the gauge in place while securing test object in the chuck
- The dial is scaled by 270 degrees with a stopper which prevents over-loading.
- Includes plastic storage case and certificate of calibration
- For calibration, use calibration kits ATGTCL for ATG, and BTGTCL for BTG (sold separately) or contact our repair dept.

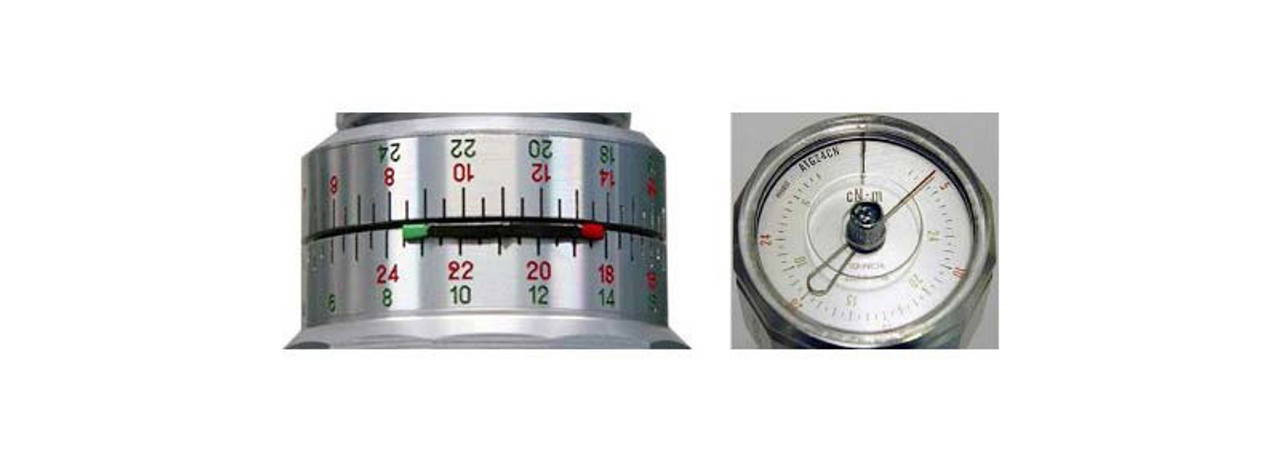

- Top and Side scales feature memory pointers to insure easy and accurate torque reading from different angles.
Specifications
| Accuracy ±2% | ||||
| AMERICAN MODEL | WITHOUT MEMORY POINTERS | |||
| WITH MEMORY POINTERS | ATG18Z-S | |||
| TORQUE RANGE | MIN.~MAX. | 2~18 | ||
| [ozf • in] | GRAD. | 0.5 | ||
| MEMORY POINTER | TOP | Standard | ||
| SIDE | Standard | |||
| DIMENSION | OVERALL LENGTH | L' | 89 | |
| [mm] | DIAMETER | D | 43.5 | |
| CHUCK GRIP | Φd | 1~6.5 | ||
| SCALE DIA. | D1 | 35 | ||
| BODY | L1 | 51 | ||
| WEIGHT[kg] | 0.18 | |||
Made In Japan
