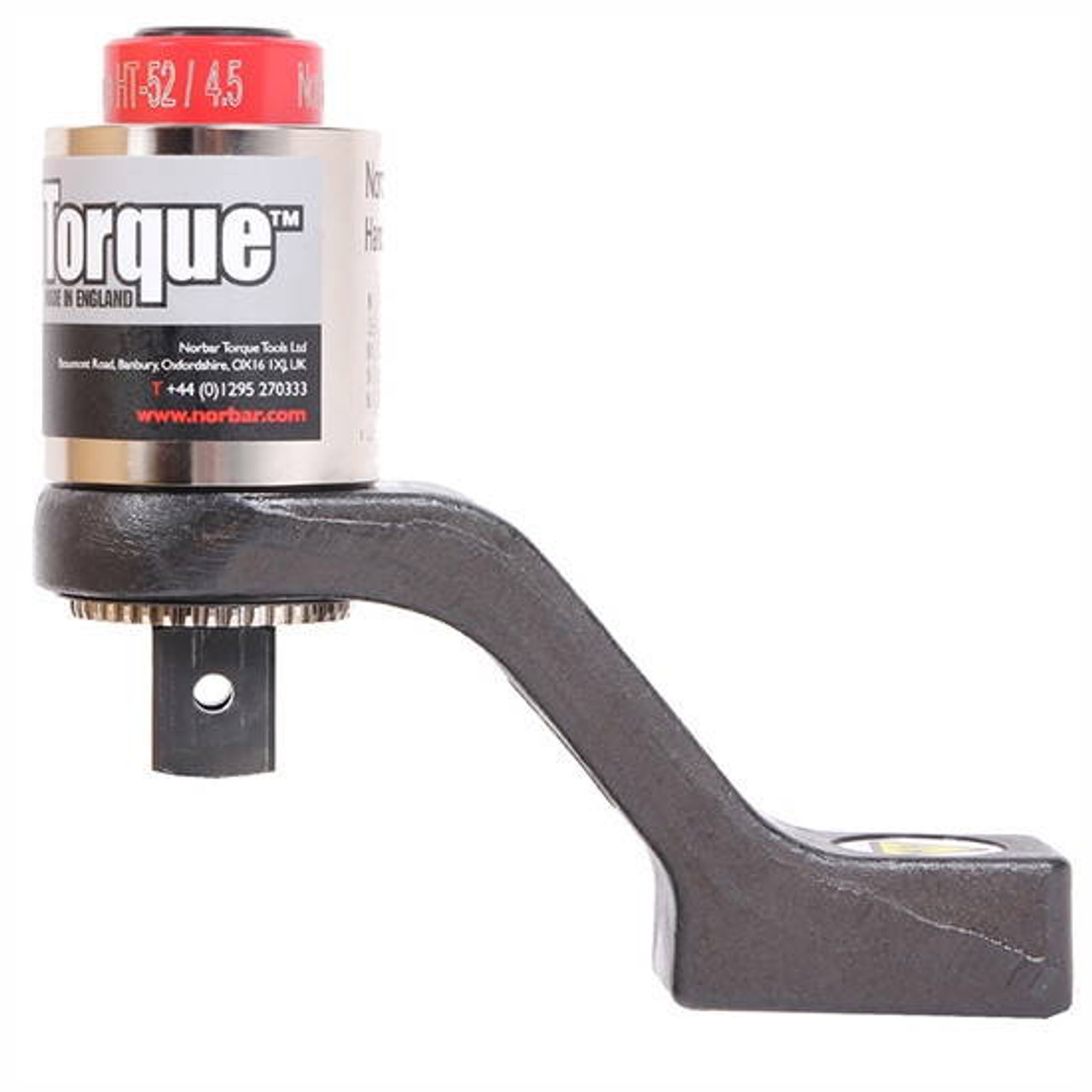

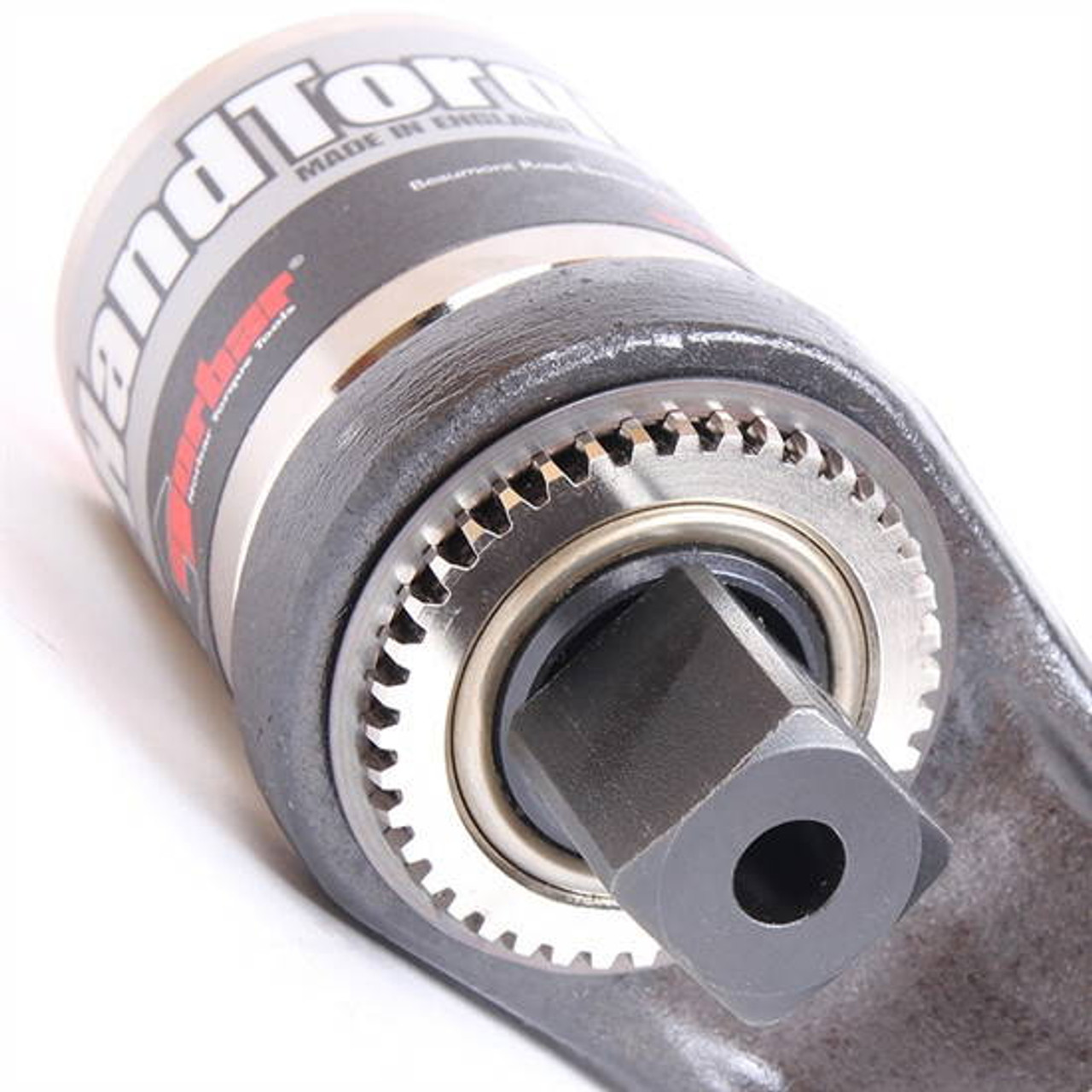

3/4" Dr 100 - 1000 Nm Norbar HT-52/4.7 Hand Torque Multiplier - 181440

3/4" Dr 100 - 1000 Nm Norbar HT-52/4.7 Hand Torque Multiplier - 181440

The Norbar 'Compact Series' Handtorque multipliers are smaller and lighter than other torque multipliers. They are supplied with a unique calibration certificate and in their own carry case. This 4.7:1 ratio model is one of the smallest in the world for its output capacity.

Features

• Guaranteed accuracy of better than +/-4%.
• 52mm diameter allows excellent access.
• Each multiplier is supplied with its own unique calibration certificate allowing the accurate calibration of input torque for critical application. Calibrated from 20% of maximum capacity.
• Tool Weight: 1.0 Kg
• Multiplication Ratio: 4.7:1
• Output Square: 3/4"
• Input Square: 1/2"
• Plate Weight: 0.9 Kg
• Accuracy: ±4%
• Operates between: 100.00 - 1000.00 N·m
