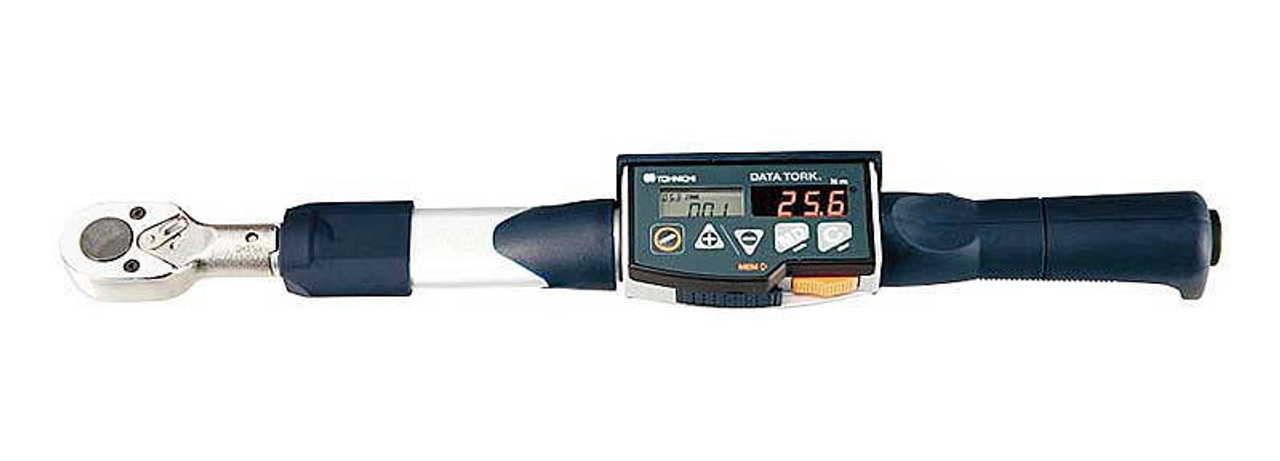

3/8" Dr 16.6-73.3 Ft Lbs / 20-100 Nm Tohnichi Interchangeable Head Digital Torque Wrench - CEM100N3X15D-G
Now:$1,181.04
MSRP:$1,243.20
(You save $62.16 )
- SKU:CEM100N3X15D-G
- Condition:New
- Max Nm:20 - 100
- Max Ft Lbs:16.6 - 73.3
- Feature:Interchangeable Head
- Accuracy:1%
- Drive Size:3/8 Inch
- Made In:Japan
Product Description
16.6-73.3 Ft Lbs / 20-100 Nm Tohnichi Interchangeable Head Digital Torque Wrench - CEM100N3X15D-G
Features
- Industrial Grade Digital Torque Wrench Ideal for Quality Inspections
- Robust and durable aluminum body.
- Two Mode Selection: Measuring Mode for quality inspections of already tightened fasteners or Tightening Mode for applying torque
- Dual LED and LCD Displays
- LCD screen is viewable under the direct light, while LED screen is vivid in dark places.
- Easily select unit of measure by keypad. Certificate supplied in SI units.
- 999 Data Memory Capacity with torque value, time/date stamp, and count
- Automatic or Manual Save Modes
- Set up Menu Selection: Measuring/Tightening Mode, Unit of Measure, Clock, Date, Data Output, Baud Rate, Hi/Lo Judgments, Buzzer, Auto- reset timer
- Supplied with Interchangeable Ratcheting Square Drive Head. A variety of other head types are sold separately
- Includes Rechargeable Battery and Charger
- Export data with Cable (sold separately)
- Included with cable purchase is Excel Receiver Software that allows data to be transferred into an Excel® Spreadsheet. (*Note: Excel® is a registered trademark of the Microsoft Corporation).
- Bluetooth Models Also Available: See Model CEM3-G-BT
- With CE mark. For international use including the EU region.
- Ergonomically designed and adapted for Color Vision Deficiencies (Tohnichi Unified Design).
- Applicable for international use including the EU region.

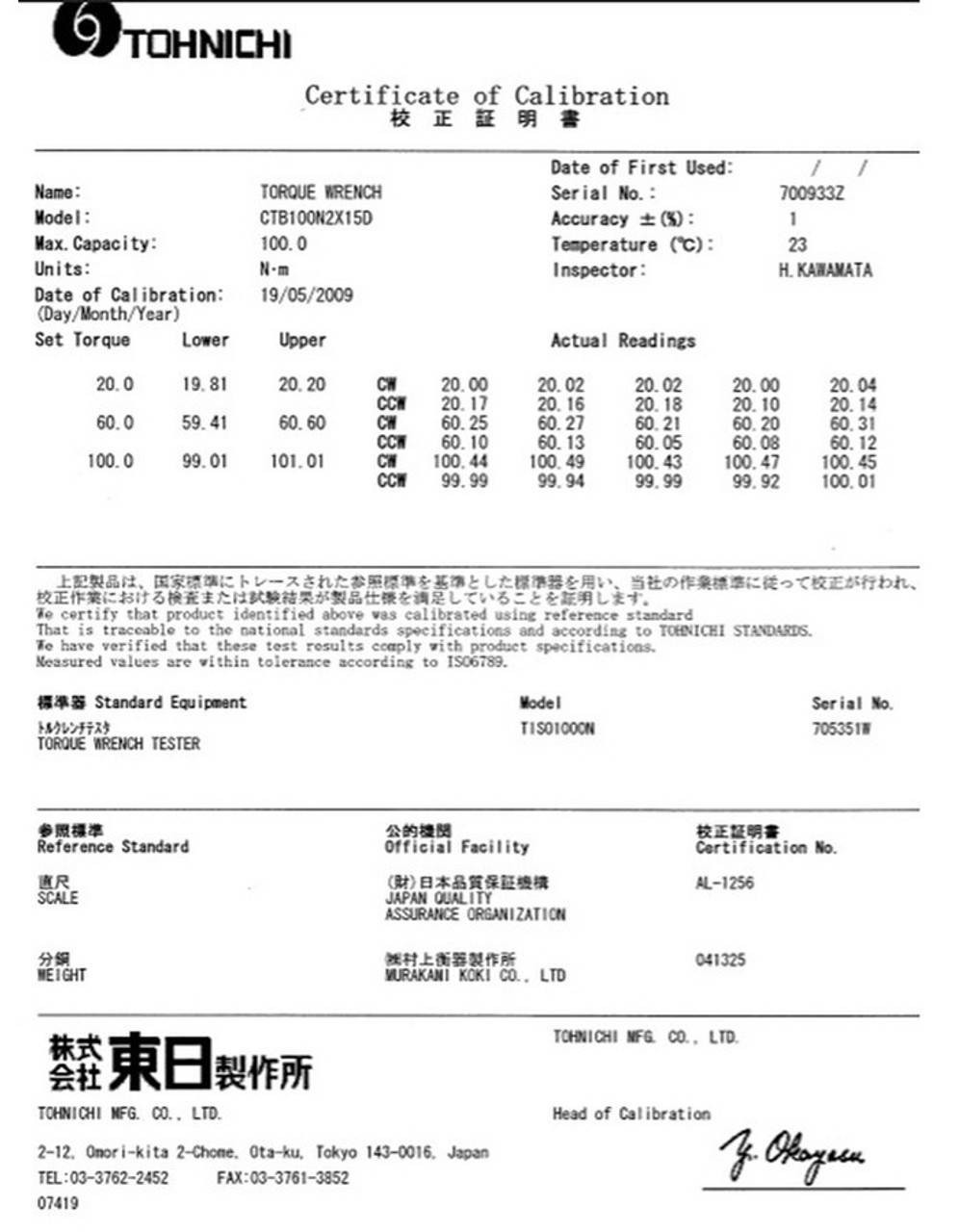

- Compliant with calibration procedures of ISO 6789 Type I Class C.
Specifications
|
Accuracy ±1% |
|||||
| MODEL | CEM100N3X15D-G | ||||
| TORQUE RANGE | MIN.~MAX. | 20~100 | |||
| [N • m] | 1 DIGIT | 0.1 | |||
| TORQUE RANGE | MIN.~MAX. | 200~1000 | |||
| [kgf • cm] | 1 DIGIT | 1 | |||
| TORQUE RANGE | MIN.~MAX. | 2~10 | |||
| [kgf • m] | 1 DIGIT | 0.01 | |||
| TORQUE RANGE | MIN.~MAX. | 200~880 | |||
| [lbf • in] | 1 DIGIT | 1 | |||
| TORQUE RANGE | MIN.~MAX. | 15~73 | |||
| [lbf • ft] | 1 DIGIT | 0.1 | |||
| MAX. HAND FORCE [N] | 275.5 | ||||
| DIMENSION | EFFECTIVE LENGTH (L) | 363 | |||
| [mm] | OVERALL LENGTH (L') | 384 | |||
| HEAD (d3) | 15 | ||||
| WEIGHT [kg] | 0.63 | ||||
| INTERCHANGEABLE HEAD | (SH,RH,QH,RQH,DH,HH) | ||||
| 15D | |||||
| DISPLAY | 7 segments LED 4 lines 10 mm | |
| 14 segments LCD 6 lines 7 mm | ||
| 7 segments LED 4 lines 3 mm | ||
| Battery Life Indicator ( 4 steppes ) | ||
| Judgment LED RED / BLUE | ||
| MEMORY | 999 (M-2 mode: 99 data) | |
| COMMUNICATION FUNCTIONS | RS232C ( 2400-19200 bps ) | |
| Serial output corresponding to a USB connector | ||
| POWER SUPPLY | Ni-MH rechargeable battery | |
| CONTINUOUS USE | Approx. 20 hrs with fully charged ( 8 hrs by 1 hrs recharging ) | |
| RECHARGING TIME | Approx. 3.5 hrs | |
| OPERATION TEMPERATURE[°C] | 0~40 no condensation | |
| BASIC FUNCTION | Peak Hold | |
| Peak Data Memory with date and time | ||
| Auto Memory & Resetting | ||
| Tightening Completion Buzzer | ||
| Judgment of Measured Data | ||
| Auto Zero setting | ||
| Auto power off ( 3 min ) | ||
| Clock | ||
Dimensions
Interchangeable Heads Available For This Wrench:
 |
 |
 |
 |
 |
 |
 |
 |
Made in Japan
