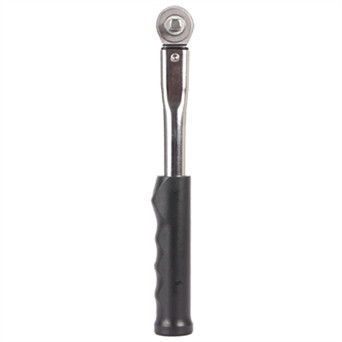

3/8" Dr 70 - 530 In Lbs / 8 - 60 Nm Norbar TW Model 60 Preset Ratchet Torque Wrench - 13051

The 3/8" Sq Dr 70.0 - 530.0 In Lbs / 8.0 - 60.0 Nm Norbar TW Model 60 P Type 'Industrial' Ratchet Torque Wrenche - 13051

P' Type Torque Wrenches are designed for the production environment where they will be set and then dedicated to a particular application. There is no scale, the wrench must be set against a torque testing device such as Norbar's Professional Torque Tester. The push-through ratchets on these models are robustly engineered for strength and durability. The strength and high wear resistance of this 60 Nm torque wrench comes from a coarse tooth pattern while a principle of offset ratchet pawls gives a narrow engagement angle. The push-through square drive is not only a robust design but allows the wrench to be used for torque control in both the clockwise and anti clockwise directions, and allows for a wider model range of up to 400 N·m.

Features:

• Setting system of this ratchet-type torque wrench is designed to discourage unauthorised alteration.

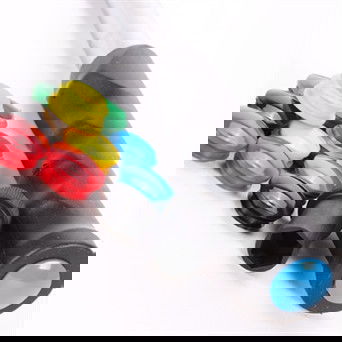

• Coloured end seals are provided to identify the wrench to a particular operator, torque setting or calibration period.
• Accuracy of +/-3% of reading exceeds all international standards for torque wrenches.
• Every wrench comes supplied with a calibration certificate.
• Available with a high quality ratchet or as a 'Torque Handle'.

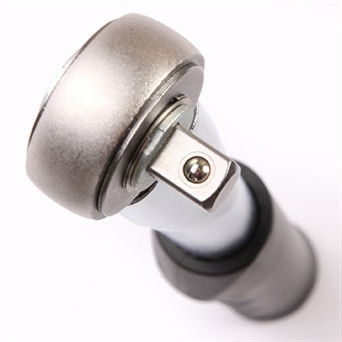

• Retained square drive will not pull out of the head when the socket is removed.
• Supplied in a moulded box for storage and protection.
• Length: 291 mm
• Square Size: 3/8"
• Weight: 0.62 Kg
• Ratchet Teeth: 72
• Accuracy: +/-3%
• Operates between:
  • 70.0 - 530.0 lbf·in
  • 5.0 - 45.0 lbf·ft
  • 8.0 - 60.0 N·m
  • 1.0 - 6.0 kgf·m
• Ratchet Type: Industrial Push-Through
• Ratchet Diameter: 35 mm
