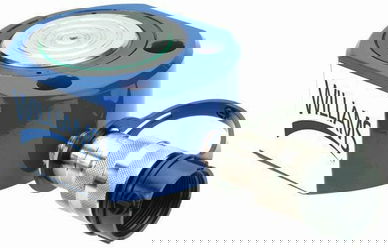

30 Ton 3/8'' Williams Flat Body Cylinders - 6CF30T05
Now:$725.35
MSRP:$1,599.10
(You save $873.75 )
- SKU:JHW6CF30T05
- UPC:662459923103
- Condition:New
- Scale:30 Ton
Product Description
The 6CF30T05 3/8'' Williams 30T Flat Body Cylinders - 6CF30T05 comes with the Williams Industrial Brands Limited lifetime warranty.
30T Flat Body Cylinder
Features
- Made of high quality steel
- Extremely low collapsed height for applications with minimal clearance at the lift point
- Great for areas of low clearance
- Maximum working pressure: 10,000 psi / 700 bar
- Country of Origin : Taiwan
- Cylinder Capacity (tons) : 30
- Stroke (in) : 0.51
- Cylinder Effective Area (in2) : 6.49
- Pressure at Capacity (psi) : 9,240
- Oil Capacity (in3) : 3.31
- Collapsed Height A (in) : 2.31
- Extended Height B (in) : 2.82
- Outside Dim. D1 x D2 (in) : 4.6 x 3.8
- Cylinder Bore Dia. C (in) : 2.87
- Plunger Dia. E (in) : 2.50
- Base to Port G (in) : 0.79
- Plunger to Base L (in) : 1.88
- Plunger to Mtg. Hole M (in) : 1.75
| DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hole Pitch X (in) | Hole Dia Y (in) | Counter Bore Dia. (in) | Counter Bore Depth (in) | ||||||||
| 2.06 | 0.4 | 0.62 | 0.44 | ||||||||
