1/4" Dr 6 - 28 In Oz / 4 - 20 cNm Tohnichi Digital Torque Gauge - BTGE20CN-G
Now:$1,763.07
MSRP:$1,820.94
(You save $57.88 )
- SKU:BTGE20CN-G
- Condition:New
- Drive Size:Pin Vice
- Range In Lbs:.4 - 1.7
- Range In Oz:6 - 28
- Range cNm:4 - 20
- Length:5.1"
- Weight:1.43 Lbs
- Accuracy:1%
- Made In:Japan
Product Description

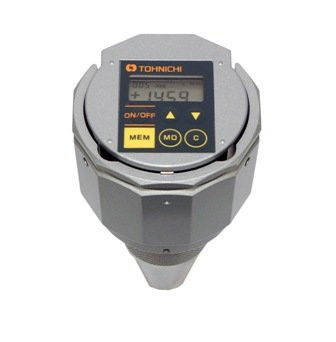

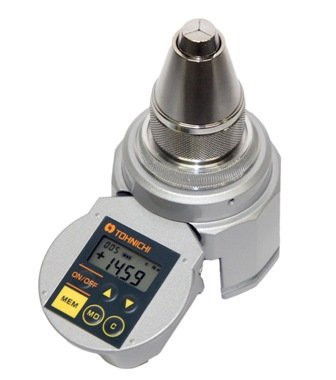

The Tohnichi BTGE20CN-G Digital Torque Gauge has a Pin Vice Holder and an English range of 6 - 28 in oz or 0.4 - 1.7 in lbs and a Metric Range of 4 - 20 cNm or .4 - 2 kgf.cm.

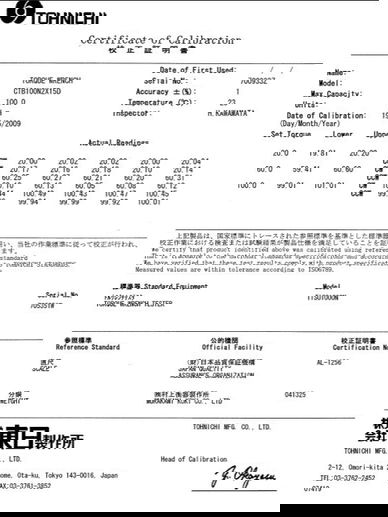

- Includes Tohnichi Factory Certificate of Calibration
- (NIST Traceable Certificate of Calibration offered for additional fee)
Features:
- Digital torque gauge with built-in digital display.
- Mini-size handheld torque gauge.
- Flip-up display can be adjusted for optimal reading and accommodates various testing positions.
- Built-in display gives user-friendliness and convenience of use.
- Ideal for torque measurement for precision machinery, electronic devices, and various assembly components.
- Physical stopper prevents accidental over-loading.
- Up to 999 readings can be saved with computing function to display max/min/meantime values.
- Coin-type lithium battery (CR2450) allows 10-hour continuous operation.
- USB cable can be used for data transfer to PC.
- Global design.
- With CE mark, and it is for international use including the EU region.
- Excel Receiver software is a data input tool for Excel® data management. It can be downloaded for free.
*Note: Excel® is a registered trademark of the Microsoft Corporation.
| DIMENSION | OVERALL LENGTH | Ｌ' | 130mm / 5.11" | ||||||
| HEIGHT | H | 130mm / 5.11" | |||||||
| CHUCK GRIP | φd | 1ï½8.5 | |||||||
| DIAMETER | φD | 75mm / 2.95" | |||||||
| BODY | 1 | 72mm / 2.83" | |||||||
| HOLDER DIA. | Φd1 | 46mm / 1.81 | |||||||
| WEIGHT | 0.65 kg /1.43 lbs | ||||||||
Made In Japan
