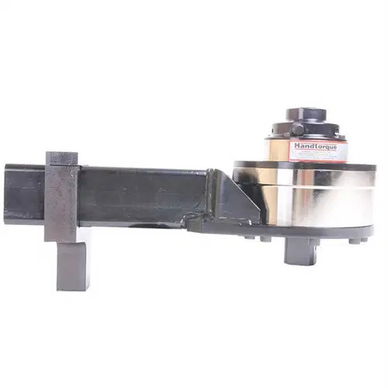

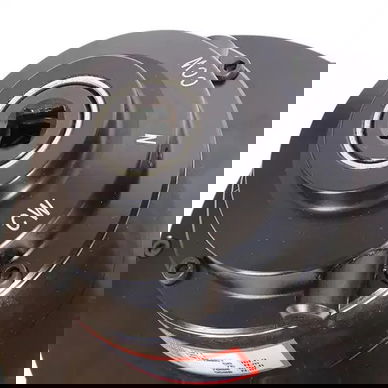

7,000 Ft Lbs 1 1/2" Dr Norbar 25:1 Torque Multiplier HT9/25 AWUR - 16070
Now:$8,292.82
MSRP:$9,568.63
(You save $1,275.81 )
- SKU:16070
- UPC:5060207567770
- Condition:New
- Drive Size:1 1/2 Inch
- Max Ft Lbs:7000
- Max Nm:9490
- Torque Ratio:25:1
- Weight Lbs:38.5
Product Description
The 16070 HT9/25 AWUR Norbar torque multiplier employs multiple stages of epicyclic gearing to give an torque ratio of 25:1. This heavy-duty torque multiplier tool delivers an English torque level of 7,000 Ft Lbs or 9,500Nm and contains a Anti Wind-Up Ratchet system.
FEATURES
- Electronic torque transducers can be fitted for precise torque monitoring.
- True torque multiplication guaranteed better than +/-4%.
- High ratios allow the use of a small torque wrench, multipliers can be used where access is limited.
- Anti Wind-Up Ratchet available on all models allowing safer and more practical operation.
- Tool Weight: 17.4 Kg
- Multiplication Ratio: 25:1
- Output Square: 1 1/2"
- Input Square: 3/4"
- Velocity Ratio: 29.752:1
- Max Input Speed: 38 revs/min
- Plate Weight: 8.3 Kg
- Plate Torque: 75 N.m
Made In England
