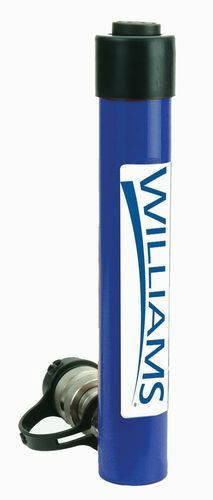

7.09" Stroke Williams 5T Single Acting Cylinder - 6C05T07

The 6C05T07 7.09" Stroke Williams 5T Single Acting Cylinder - 6C05T07 comes with the Williams Industrial Brands Limited lifetime warranty.

Features

• 39 models
• Internal plunger threads
• Snap in grooved saddles
• Rod wiper seals out dirt and contamination
• Collar fi xture threads
• Two base mounting holes on most models
• High strength steel construction from gun drilled solid bar
• High fl ow 3/8" NPTF couplers
• Collar thread protector
• One piece high grade alloy bearing for side load protection and long life
• Polyurethane cup seal provides optimum performance
• Industrial hard chrome plated ram helps prevent rust and corrosion
• Solid steel cylinder body
• Heavy duty return spring provides quicker retraction
• Ideal for lifting and pressing
• Maximum working pressure: 10,000 psi / 700 bar
• Country of Origin : Taiwan
• Cylinder Capacity (tons) : 5
• Stroke (in) : 7.09
• Cylinder Effective Area (in2) : 1.00
• Pressure at Capacity (psi) : 10,000
• Oil Capacity (in3) : 7.09
• Collapsed Height A (in) : 10.71
• Extended Height B (in) : 17.80
• Cylinder Bore Dia. C (in) : 1.13
• Outside Dia. D (in) : 1.50
• Plunger Dia. E (in) : 1.00
• Saddle Dia. F (in) : 0.98
• Base to Inlet Port (in) : 0.79
• Collar Thread (in) : 1 1/2 -16
• Collar Thread Length (in) : 1.10
• Plunger Internal Thread (in) : 3/4"-16UNF
• Plunger Thread Length (in) : 0.63
• Base Mounting Hole Bolt Circle (in) : 1.00
• Base Mounting Hole Thread (in) : 1/4" - 20UNC
• Base Mounting Hole Thread Depth (in) : 0.55
