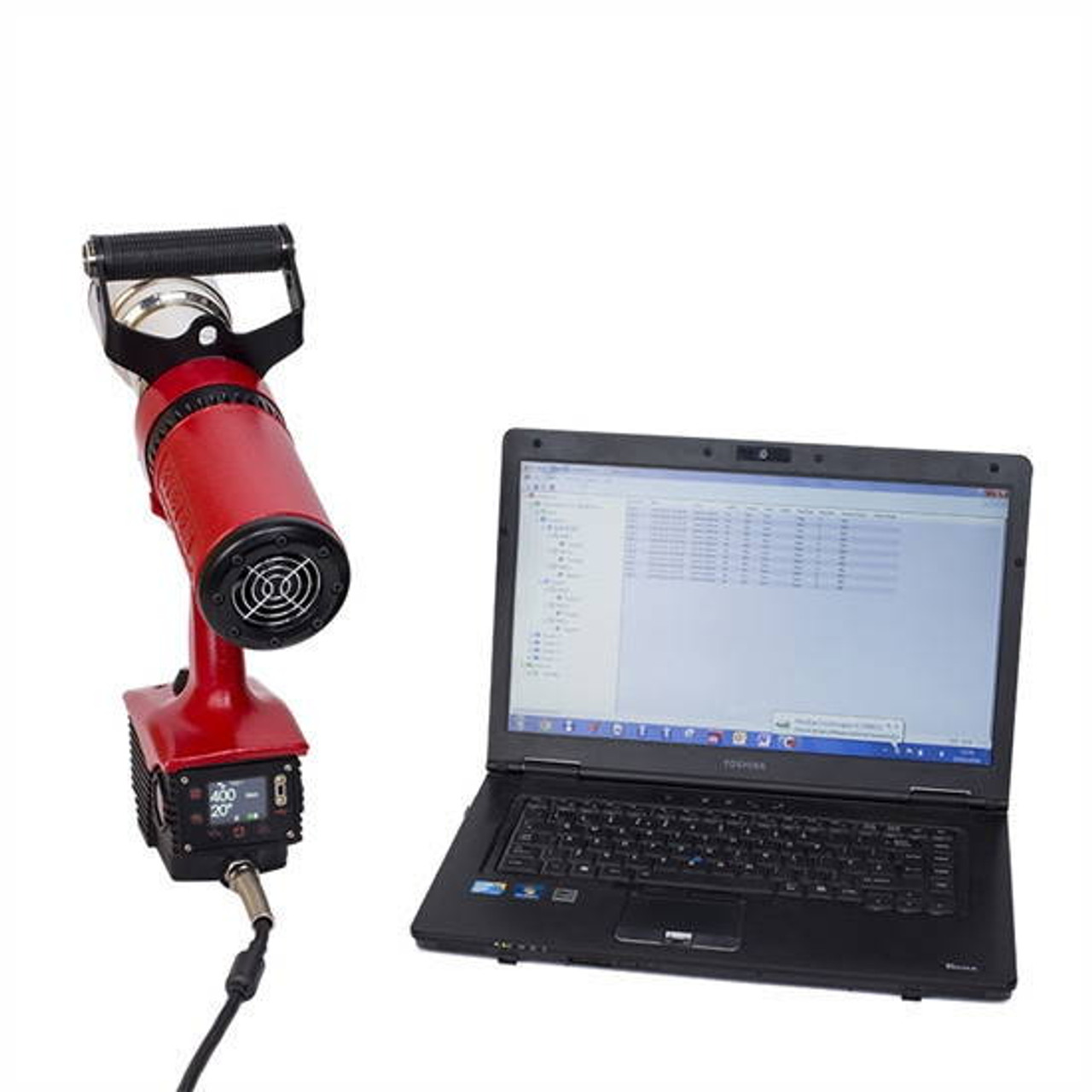

Norbar EvoTorque (2) 1" Dr 199-1,991 Ft Lbs / 270-2,700 Nm Electronic Torque Multiplier - 180233.B08

The Norbar EvoTorque 2 Electronic Torque Multiplier 180233.B08 has a 1'' Drive and provides a range of 199-1991 Ft Lbs or 270-2700 Nm.  The EvoTorque® 2 is an electronic torque tool designed for accurately applying torque to threaded fasteners. Tools are factory calibrated to ±3% of reading. The unique ‘intelligent joint sensing’ technology continually measures the joint during tightening and, when necessary, employs dynamic braking to avoid torque over-shoot due to motor inertia. Consequently, EvoTorque® can apply torque accurately over a wide range of joint rates from hard (high torque rate) through to soft (low torque rate). All EvoTorque® tools are highly tolerant of supply voltage and frequency variation. When the tool runs, it will run accurately. If the supply voltage is outside of tolerance then, as a safety feature, the tool will be prevented from starting.

The EvoTorque® 2 has the ability to memorise multiple targets, work IDs, user IDs and readings. The tool has three modes of operation: Torque, Torque and Angle and Torque Audit. The unique Audit Mode is a sophisticated feature for testing pre-tightened bolts with minimal impact on the original fastening torque and can provide quality control data for monitoring joint performance over time.

Features:

• USB and Bluetooth® 4.0 data transfer (also called Bluetooth® Smart)
• Torque and Torque & Angle modes
• New Audit Torque Mode enables users to check pre-tightened joints
• Clear indication of successful joint application
• OLED, colour display, clearly visible even in poor lighting
• 3000 reading memory, time and date stamped
• Results uploaded in real time
• Complimentary PC software 'EvoLog' for data management and tool configuration
• 12 user IDs can be downloaded to the tool and results can be stored against individual users
• Capacity for setting 20 stand-alone targets plus up to 5 work groups on the tool
• Multiple units of torque measurement including N.m, lbf.ft, ft.lb and kgf.m
• Easily removable secondary handle for balanced handling of the tool
• New steel reaction as standard and aluminium reactions as optional accessories
• Rated to IP44 for dust and water ingress
• Each tool is supplied with a traceable calibration certificate
• 1" Square Drive
• 8.5 rpm
• Tool Weight of 12.85kg
• Calibrated to 20% - 100% of tool's maximum capacity
• Operational targets can be set from 10% of tool capacity
