Norbar Power Tool Test Fixture for use with TruCheck 2 - 80033
Now:$2,971.54
MSRP:$3,267.57
(You save $296.03 )
- SKU:80033
- UPC:5060922234230
- Condition:New
- Drive Size:1 Inch
- Range Ft Lbs:147.6-1,548
- Range Nm:200 - 2100
- Feature:Works with pneumatic & electronic torque tools.
Product Description

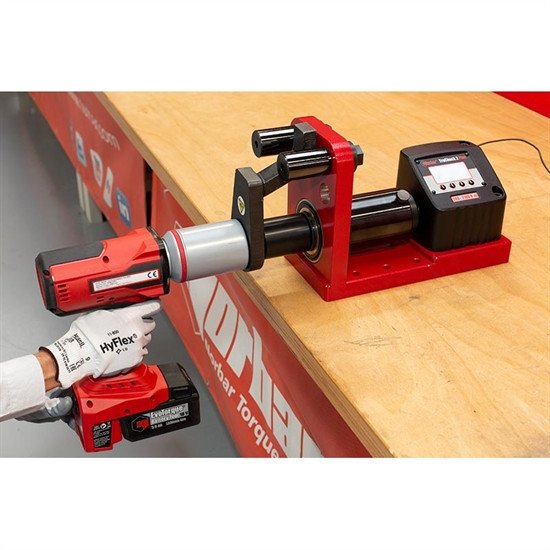

The Power Tool Test Fixture for TruCheck 2 is a simple, robust device that allows non-impacting power tools up to 2,100 N·m to be tested. The universal torque reaction arrangement will suit reaction arms supplied as standard with most Norbar and other pneumatic, electric and cordless torque tools. A complete system comprises the Test Fixture 80033 along with one of the TruCheck 2 Plus models, either 1,100 N·m (part number 43531) or 2,100 N·m (part number 43533) which must be ordered separately.
Features:
- Power Tool Test Fixture is designed for testing PTM-72, PT-72 & ET-72
- Test fixture designed to simulate a bolted joint
- Self-reacting system
- Weight: 24.5 kg
- Square Drive: 1" with a 3/4" adapter
Made in the UK.
