Norbar Smart Flange Mounted Transducer 1/2", 3/4" & 1" Dr 20 - 1000 Ft Lbs - 50682.LOG
Now:$3,251.97
MSRP:$3,441.23
(You save $189.26 )
- SKU:50682.LOG
- UPC:5060922233134
- Condition:New
- Scale:Ft Lbs
- Type:Mounted
- Drive Size:3/4 Inch
- Drive Size:1/2 Inch
- Drive Size:1 Inch
Product Description

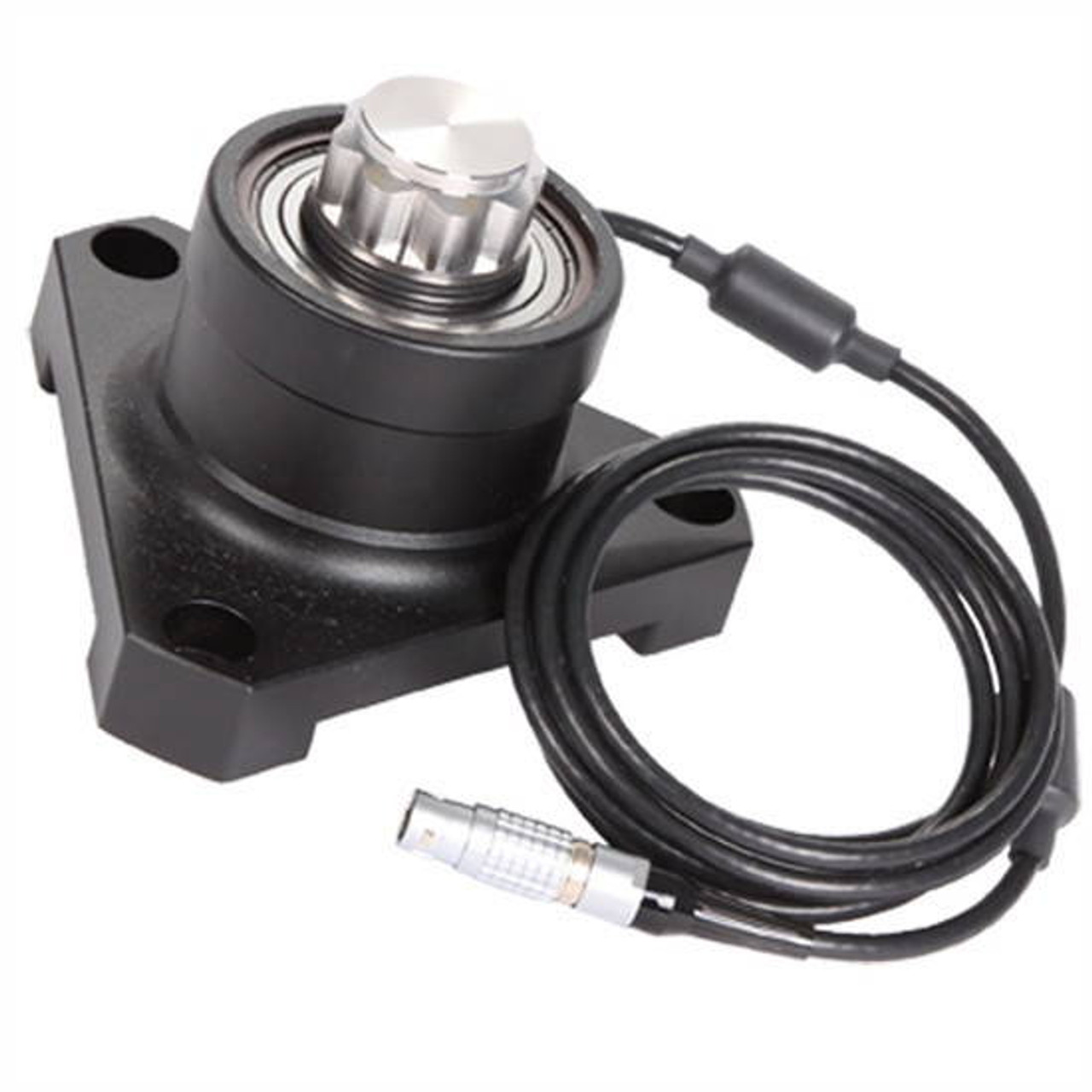

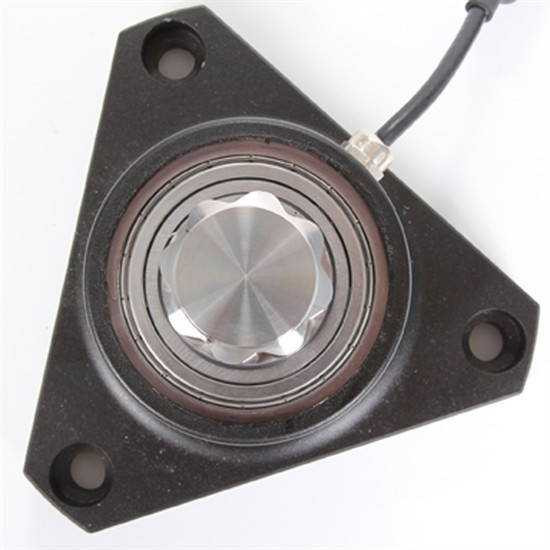

The Norbar 50682.LOG Smart Flange Mounted Transducer has a 1/2" or 3/4" Drive and can measure in an English range of 20 - 1000 Ft Lbs. Norbar Flange Mounted Transducers incorporate mounting points for securely fixing the transducer to the working surface. The Norbar torque transducer lead is also included and is fitted with a high quality Lemo® connector, suitable for attachment to TST, TTT and Pro-Log instruments.
FEATURES
- Accuracy: Class 1 for the primary classification range (+/-0.5% of reading).
- 'SMART' - TST, TTT, TTL-HE and T-Box instruments will automatically recognizes calibration details.

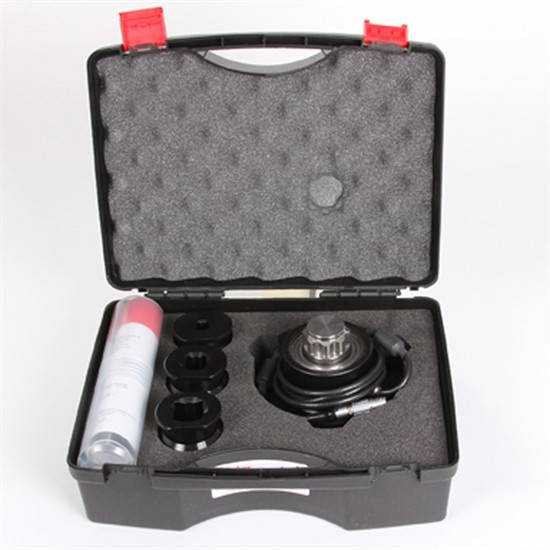

- Rundown Fixture is included allowing joint simulation for power tool testing.
- Supplied with NIST calibration certificate.
- Transducer has a 22mm Male Bi-Square drive and is supplied with precision made square drive adapters.
- If using this transducer with a Series 1 TST or TTT (Part No.s 43198 - 43201) or a Pro-Log display instrument, please contact Norbar.
- Weight: 5.45 Kg
- Temp Range Operating: -10°C to +50°C
- Temp Range Storage: -20°C to +70°C
- Thermal Effect On Span: < +/- 0.03%/°C
- Thermal Effect On Zero: < +/- 0.01%/°C
- Torsional Deflection: < 1°
- Fatigue: > 10 exp 7 cycles
- Maximum Torsion Capacity: 150%
- Connector: Lemo®
- Drive 1: 1/2"
- Drive 2: 3/4"
- Drive 3: 1"
Made in England
