Tohnichi 40 - 430 In Lbs interchangeable Head Dial Torque Wrench - 500CDB-A-S
Now:$370.27
MSRP:$401.70
(You save $31.43 )
- SKU:500CDB-A-S
- Condition:New
- Max In Lbs:430
- Length:12.2"
- Type:Dial
- Accuracy:3%
- "Drive Size:12D"
- Made In:Japan
Product Description

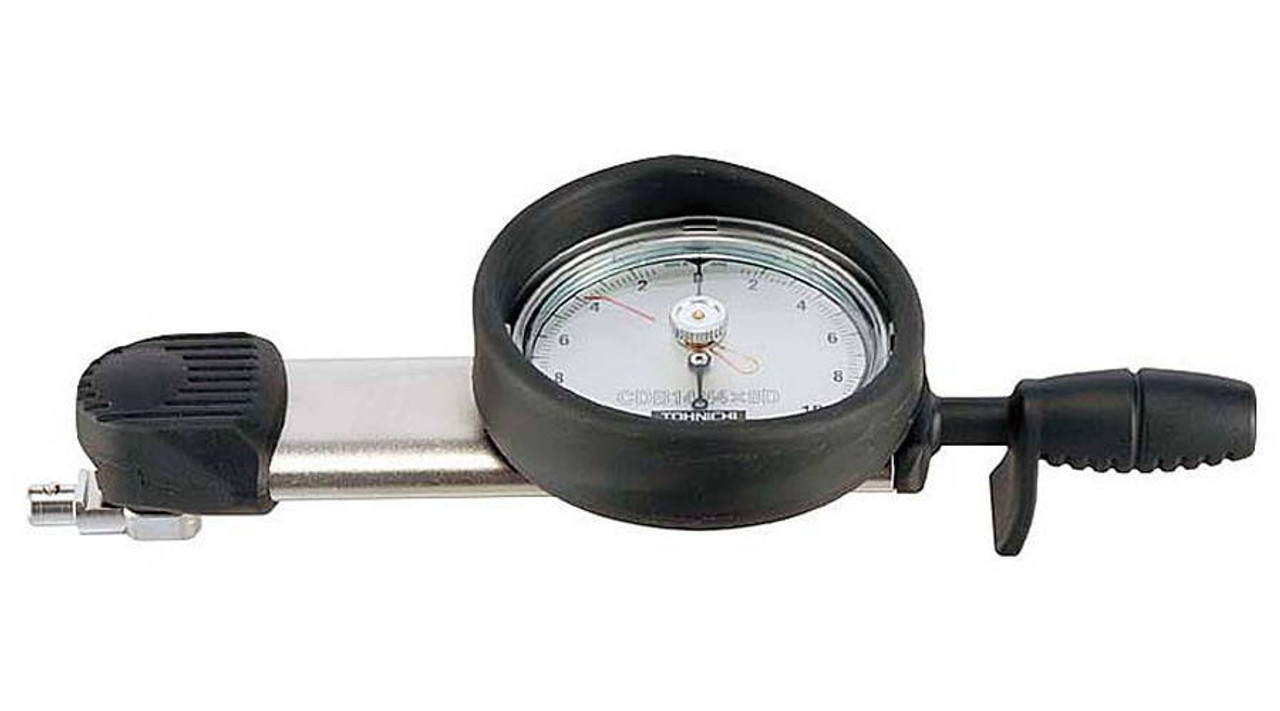

The Tohnichi 500CDB-A-S interchangeable dial torque wrench has a range of 40 - 430 In Lbs and uses Tohnichi size 12D heads.
Tohnichi 500CDB-A-S Dial Torque Wrench Features:
- Accuracy ± 3%.
- Easily exchange different head types for various applications such as ring head, open end head, and ratchet. (See full selection of available heads in accessories section below)
- Lightweight, easy-to read large scale features follower hand memory pointer that captures peak torque
- Since the amount of deformation is small, the operator's fatigue is reduced compared to the flat beam type torque wrench.
- The dial is movable making it easy to adjust the zero point, or use for tightening by moving dial to desired torque and tightening to "0"
- The dial indicator has a full-surround protective cover to prevent damage to external objects.
- Low range models have handle designed to guide operator to use index finger to apply lighter force to avoid possible over torque

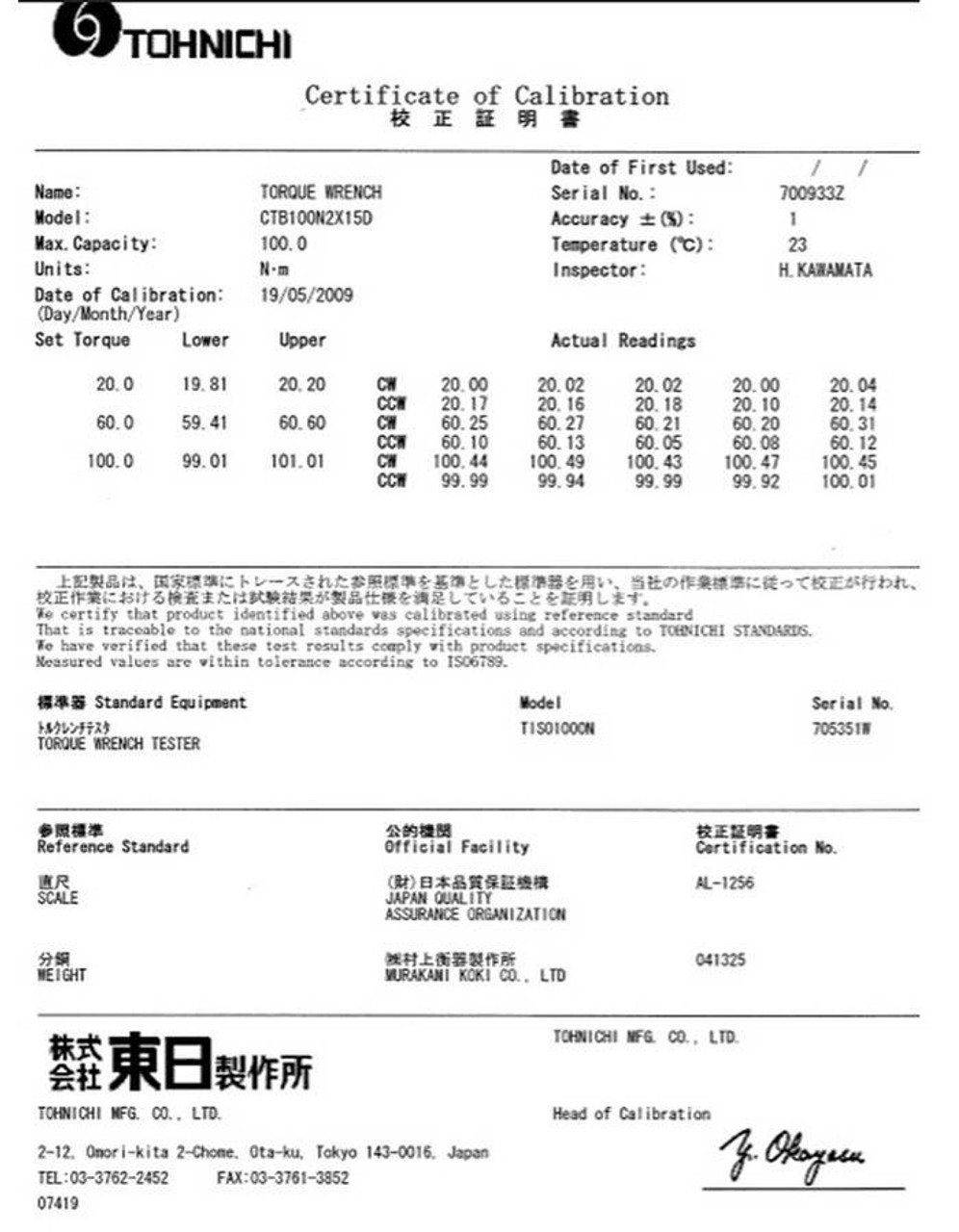

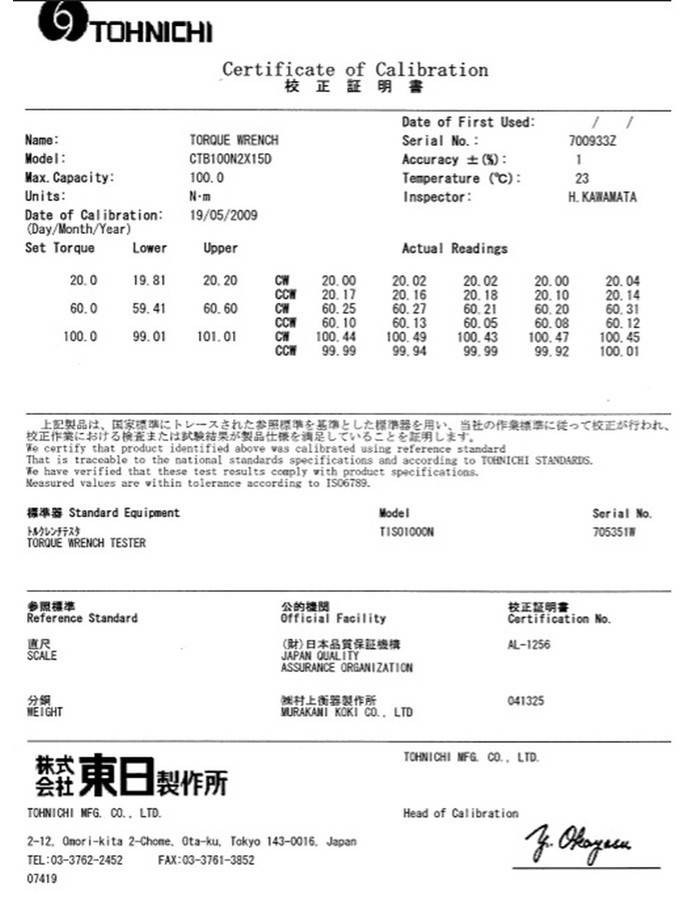

- Includes certificate of calibration compliant with calibration procedures of ISO 6789 Type I Class B.
Specifications
| Accuracy ± 3% | |||
| AMERICAN MODEL | 500CDB-A-S | ||
| TORQUE RANGE [lbf • in/lbf • Ft] | MIN.~MAX. | 40~430 | |
| GRAD. | 5 | ||
| APPLICABLE BOLT (REFERENCE) | STEEL | M12 | |
| HEIGHT TENSION | M8 | ||
| MAX. HAND FORCE [N] | 161.3 | ||
| DIMENSION | EFFECTIVE LENGTH | L | 12.2" |
| OVERALL LENGTH | L' | 13" | |
| HEIGHT | H | 2.24" | |
| HEAD | d3 | 12 | |
| WEIGHT [Lbs] | 1 | ||
Notes
Overall length does not include interchangeable head. PH (Pipe wrench head) type interchangeable head is not available for this model.
interchangeable Heads Available For This Wrench:
 |  |  |  |
 |  |  |
Made in Japan
