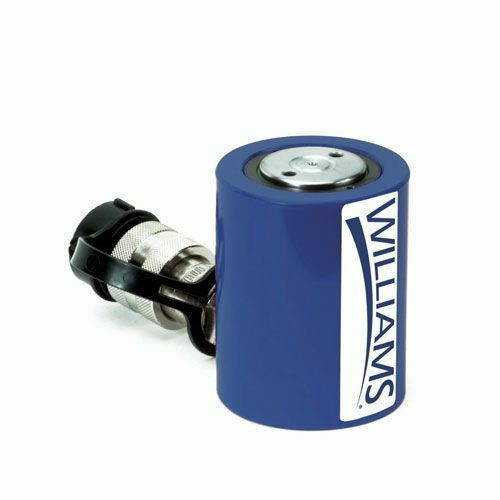

Williams 10T Low Profile Cylinder - 6CL10T01

The 6CL10T01 Williams 10T Low Profile Cylinder - 6CL10T01 comes with the Williams Industrial Brands Limited lifetime warranty.

10T Low Profile Cylinder

Features

• Compact design for use in confi ned spaces
• Rod wiper helps seal out dirt and contamination
• Specially designed return spring ensures a quick retraction and extends the life of the spring
• Industrial hard chrome plated ram helps prevent scratching and corrosion
• Plunger end is grooved to reduce load slippage
• Includes high fl ow ball coupler and dust cap
• Coupler is tilted upward for added clearance
• Maximum working pressure: 10,000 psi/700 bar
• Country of Origin: Taiwan
• Cylinder Capacity (tons) : 10
• Stroke (in) : 1.50
• Cylinder Effective Area (in2) : 2.35
• Internal Pressure at Capacity (psi) :8,511
• Oil Capacity (in3) : 3.53
• Collapsed Height A (in) : 3.48
• Extended Height B (in) : 4.98
• Cylinder Bore Dia. C (in) :1.73
• Outside Dia. D (in) : 2.75
• Plunger Dia. E (in) : 1.50
• Plunger Mounting Bolt Circle X (in): 1.03
• Plunger Mounting Thread y (mm) : M4
• Plunger Mounting Thread Depth z (in): 0.32
