1/4" Dr 1 - 8 Nm Tohnichi Dial Torque Driver - FTD8N2-S
Now:$601.45
MSRP:$645.96
(You save $44.51 )
- SKU:FTD8N2-S
- Condition:New
- Drive Size:1/4 Inch
- Range Nm:1 - 8
- Accuracy:3%
- Made In:Japan
Product Description

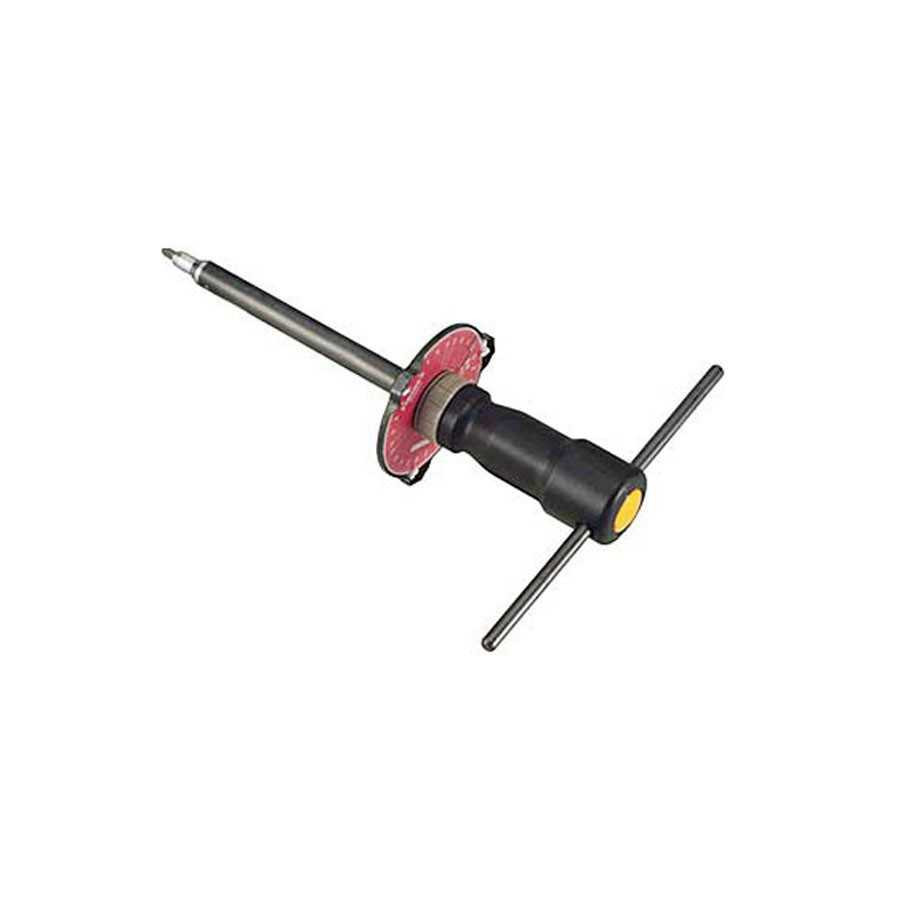

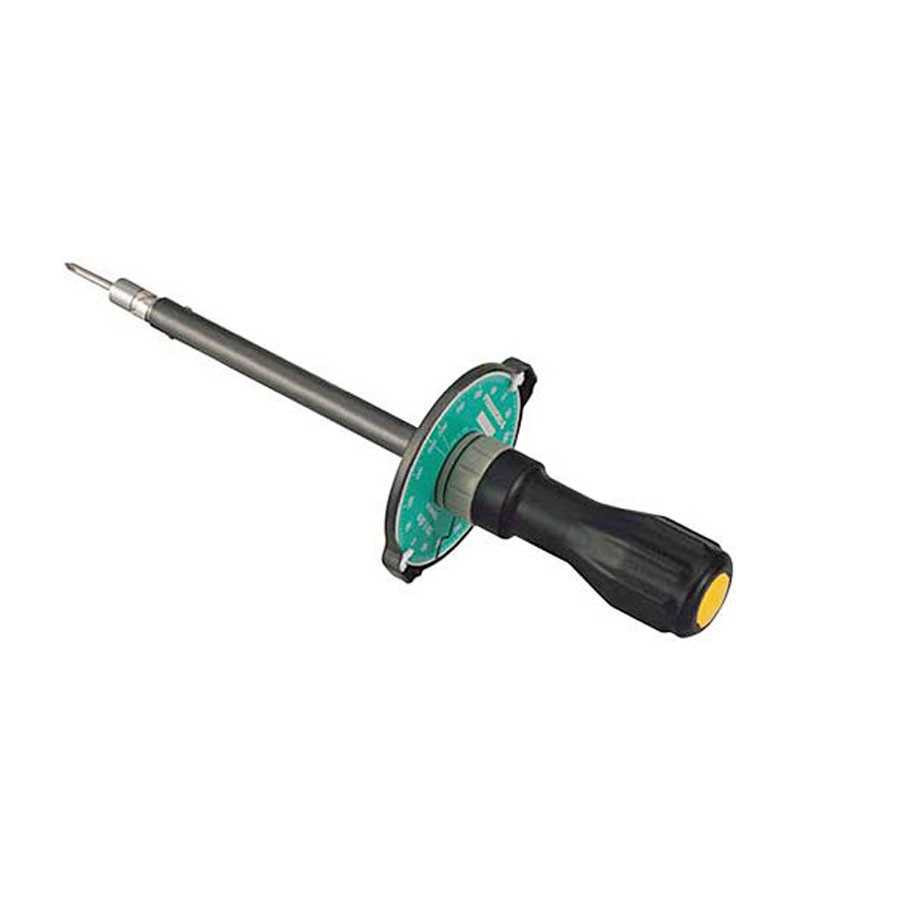

The FTD8N2-S Tohnichi Dial Torque Drive accepts universal 1/4 Inch drive bits and has an English range of 1 - 8 In Lbs.
Features
- Direct reading torque screwdriver ideal for inspection.
- Accuracy ± 3%
- Bi-Directional Loading
- Brightly Colored Contrasting Scale for Easy Reading
- Protected Main Pointer
- Easily Adjust Zero Point with Press and Rotate Scale Plate
- Memory pointer captures peak torque.
- Black Resin Comfort Grip
- Accepts standard 1/4" hex root size bits (sold separately).
- FTD8N2-S and FTD16N2-S have 1/4 sq drive and come with Auxiliary tightening tool and bits as standard accessory.
- Includes Certificate of Calibration
- Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type I Class D.
Specifications
| Accuracy ± 3% | |||||||||||||
| S.I. MODEL | FTD8N2-S | ||||||||||||
| TORQUE RANGE [cN . m] | MIN.~MAX. | N . m 1~8 | |||||||||||
| GRAD. | N . m 0.2 | ||||||||||||
| APPLICABLE SCREW | SMALL SCREW | M6 | |||||||||||
| TAPPING SCREW | (M4.5) | ||||||||||||
| DIMENSION [mm] | OVERALL LENGTH | L' | 338 | ||||||||||
| GRIP | D1 | 50 | |||||||||||
| BODY | D2 | 112 | |||||||||||
| D3 | 18 | ||||||||||||
| D4 | |||||||||||||
| L1 | 188 | ||||||||||||
| L2 | 150 | ||||||||||||
| WEIGHT [kg] | 0.9 | ||||||||||||
| SCALE PLATE COLOR | RED (VERMILLION) | ||||||||||||
| ACCESSORY BIT | + | #3 | |||||||||||
| -thickness X width | 1.2x8 | ||||||||||||
Made in Japan
