1/4" Dr 3 - 16 Nm Tohnichi Dial Torque Driver - FTD16N2-S
Now:$646.65
MSRP:$680.68
(You save $34.03 )
- SKU:FTD16N2-S
- Condition:New
- Drive Size:1/4 Inch
- Range Nm:3 - 16
- Accuracy:3%
- Made In:Japan
Product Description

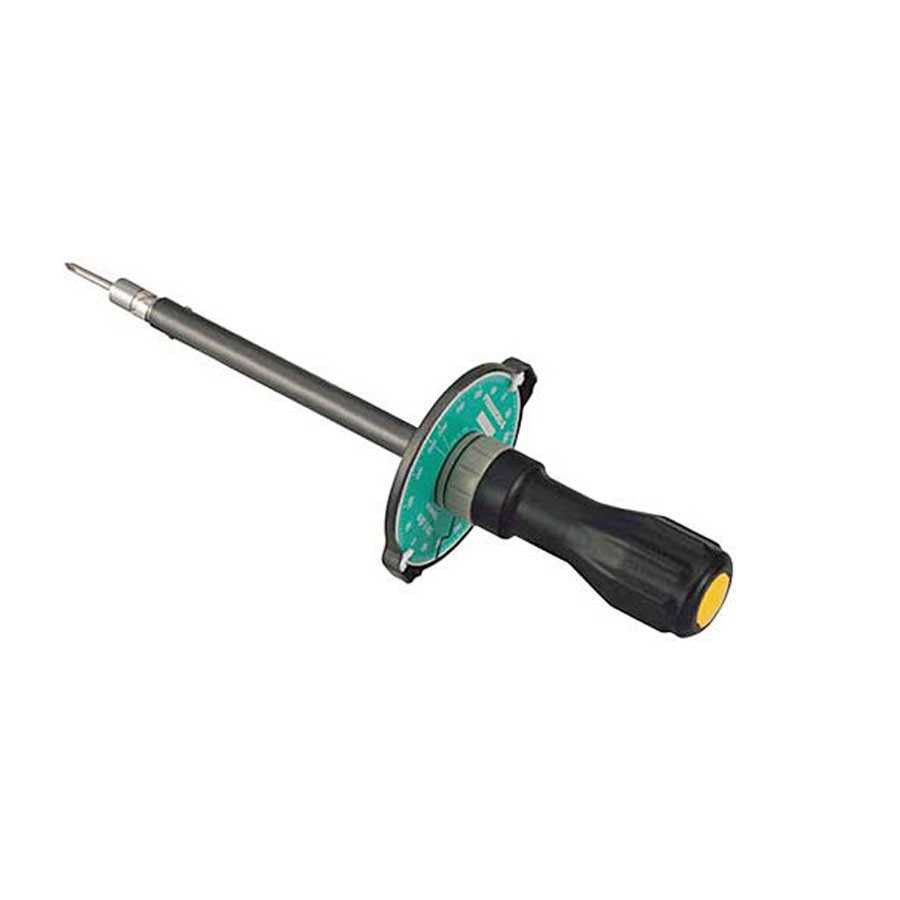

The Tohnichi FTD16N2-S dial torque screwdriver accepts universal 1/4-inch drive bits and has an English range of 3-16 In Lbs.
Features
- Direct reading torque screwdriver ideal for inspection.
- Accuracy ± 3%
- Bi-Directional Loading
- Brightly Colored Contrasting Scale for Easy Reading
- Protected Main Pointer
- Easily Adjust Zero Point with Press and Rotate Scale Plate
- Memory pointer captures peak torque.
- Black Resin Comfort Grip
- Accepts standard 1/4" hex root size bits (sold separately).
- FTD8N2-S and FTD16N2-S have 1/4 sq drive and come with Auxiliary tightening tool and bits as standard accessory.
- Includes Tohnichi Factory Certificate of Calibration
- (NIST Traceable Certificate of Calibration offered for additional fee)
Specifications
| Accuracy ± 3% | |||||||||||||
| S.I. MODEL | FTD16N2-S | ||||||||||||
| TORQUE RANGE [cN . m] | MIN.~MAX. | 3~16 | |||||||||||
| GRAD. | 0.5 | ||||||||||||
| APPLICABLE SCREW | SMALL SCREW | M8 | |||||||||||
| TAPPING SCREW | M6(M7) | ||||||||||||
| DIMENSION [mm] | OVERALL LENGTH | L' | 338 | ||||||||||
| GRIP | D1 | 50 | |||||||||||
| BODY | D2 | 112 | |||||||||||
| D3 | 18 | ||||||||||||
| D4 | |||||||||||||
| L1 | 188 | ||||||||||||
| L2 | 150 | ||||||||||||
| WEIGHT [kg] | 0.93 | ||||||||||||
| SCALE PLATE COLOR | BLUE | ||||||||||||
| ACCESSORY BIT | + | #3 | |||||||||||
| -thickness X width | 1.2x8 | ||||||||||||
Made in Japan
