1/4" Dr 5 - 40 In Lbs Tohnichi Dial Torque Driver - 40FTD2-A-S
Now:$283.62
MSRP:$324.13
(You save $40.52 )
- SKU:40FTD2-A-S
- Condition:New
- Drive Size:1/4 Inch
- Range In Lbs:5 - 40
- Accuracy:3%
- Made In:Japan
Product Description

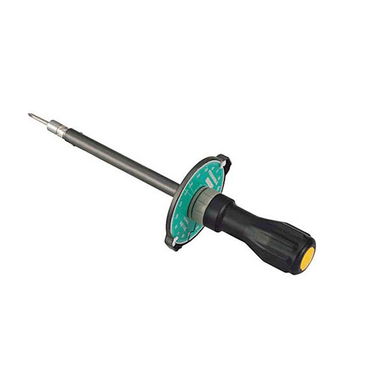

The 40FTD2-A-S Tohnichi Dial Torque Drive accepts universal 1/4 Inch drive bits and has an English range of 5 - 40 In Lbs.
Features
- Direct reading torque screwdriver ideal for inspection.
- Accuracy ± 3%
- Bi-Directional Loading
- Brightly Colored Contrasting Scale for Easy Reading
- Protected Main Pointer
- Easily Adjust Zero Point with Press and Rotate Scale Plate
- Memory pointer captures peak torque.
- Black Resin Comfort Grip
- Accepts standard 1/4" hex root size bits (sold separately).
- FTD8N2-S and FTD16N2-S have 1/4 sq drive and come with Auxiliary tightening tool and bits as standard accessory.
- Includes Certificate of Calibration
- Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type I Class D.
Specifications
| Accuracy ± 3% | |||||||||||||
| AMERICAN MODEL | 40FTD2-A-S | ||||||||||||
| TORQUE RANGE [ozf . in/lbf . in] | MIN.~MAX. | 5~40 | |||||||||||
| GRAD. | 1 | ||||||||||||
| APPLICABLE SCREW | SMALL SCREW | M5 | |||||||||||
| TAPPING SCREW | M4 | ||||||||||||
| DIMENSION [mm] | OVERALL LENGTH | L' | 272 | ||||||||||
| GRIP | D1 | 38 | |||||||||||
| BODY | D2 | 90 | |||||||||||
| D3 | 13 | ||||||||||||
| D4 | 11 | ||||||||||||
| L1 | 157 | ||||||||||||
| L2 | 115 | ||||||||||||
| WEIGHT [kg] | 0.37 | ||||||||||||
| SCALE PLATE COLOR | PURPLE | ||||||||||||
Made in Japan
