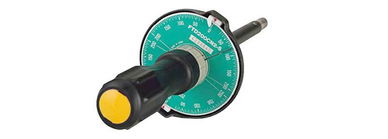

1/4" Dr .5 - 5 In Lbs Tohnichi Dial Torque Driver - 5FTD2.A-S
Now:$272.58
MSRP:$326.24
(You save $53.66 )
- SKU:5FTD2.A-S
- Condition:New
- Drive Size:1/4 Inch
- Range In Lbs:.5 - 5
- Accuracy:3%
- Made In:Japan
Product Description
The 5FTD2.A-S Tohnichi Dial Torque Drive accepts universal 1/4 Inch drive bits and has an English range of .5 - 5 In Lbs.
Features
- Direct reading torque screwdriver ideal for inspection.
- Accuracy ± 3%
- Bi-Directional Loading
- Brightly Colored Contrasting Scale for Easy Reading
- Protected Main Pointer
- Easily Adjust Zero Point with Press and Rotate Scale Plate
- Memory pointer captures peak torque.
- Black Resin Comfort Grip
- Accepts standard 1/4" hex root size bits (sold separately).
- FTD8N2-S and FTD16N2-S have 1/4 sq drive and come with Auxiliary tightening tool and bits as standard accessory.

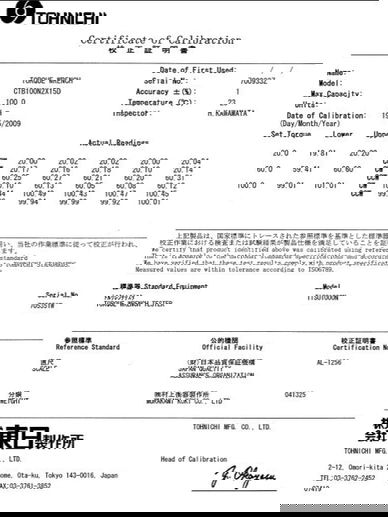

- Includes Tohnichi Factory Certificate of Calibration
- (NIST Traceable Certificate of Calibration offered for additional fee)
Specifications
| AMERICAN MODEL | 5FTD2-A-S | ||
| TORQUE RANGE [ozf • in/lbf • in] | MIN.～MAX. | lbf • in 0.5～5 | |
| GRAD. | lbf • in 0.1 | ||
| APPLICABLE SCREW | SMALL SCREW | M2.5 | |
| TAPPING SCREW | （M2.2） | ||
| DIMENSION [mm] | OVERALL LENGTH | L' | 272 |
| GRIP | D1 | 38 | |
| BODY | D2 | 90 | |
| D3 | 13 | ||
| D4 | 11 | ||
| L1 | 157 | ||
| L2 | 115 | ||
| WEIGHT [kg] | 0.37 | ||
Made in Japan
