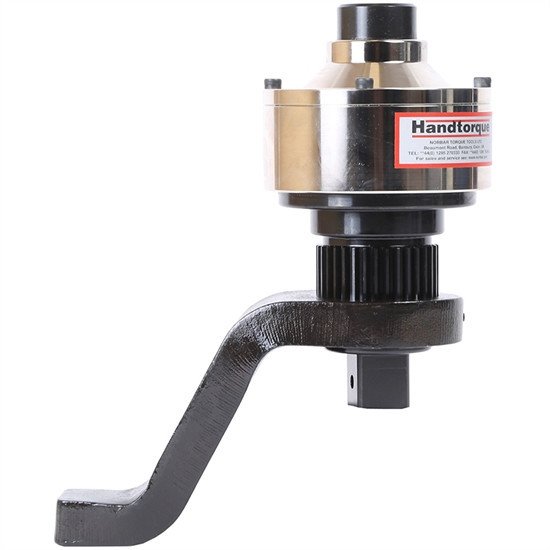

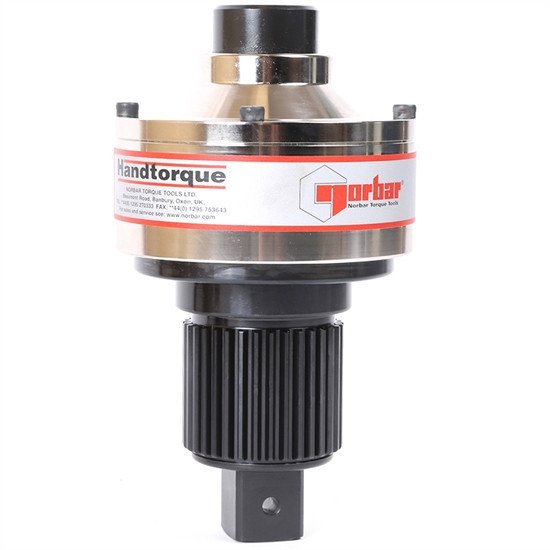

1" Dr 220 - 2200 Ft Lbs / 300 - 3000 Nm Norbar HT30/5 Hand Torque Small Diameter - 18003

1" Dr 220 - 2200 Ft Lbs / 300 - 3000 Nm Norbar HT30/5 Hand Torque Small Diameter - 18003

HandTorque models HT30 and 60 have all the features of the standard series, but have a higher torque output for a given gearbox diameter.

Features

• Reduced diameter allows better access, particularly on pipe flanges.
• Reaction taken from high strength spline.
• Reaction foot can slide on the spline to allow for sockets of various lengths.
• Anti Wind-Up Ratchet available on all models (except 5:1 ratios), allowing safer and more practical operation.
• HT45 has integral angle protractor for easy torque and angle tightening.
• Tool Weight: 5 Kg
• Multiplication Ratio: 5:1
• Output Square: 1"
• Input Square: 3/4"
• Velocity Ratio: 5.454:1
• Max Input Speed: 24 revs/min
• Plate Weight: 2 Kg
• Accuracy: ±4%
• Operates between: 220.00 - 2200.00 lbf·ft, 300.00 - 3000.00 N·m, 30.00 - 300.00 kgf·m
