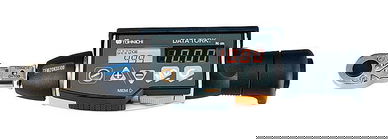

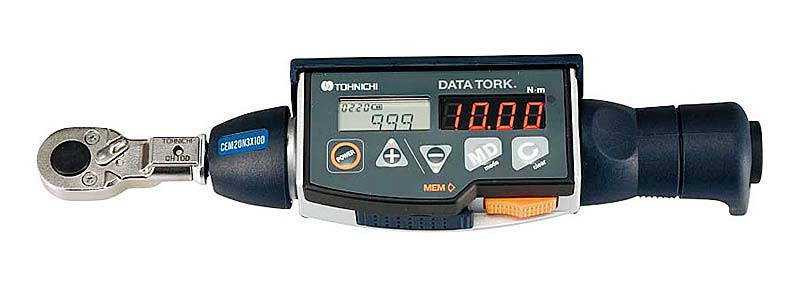

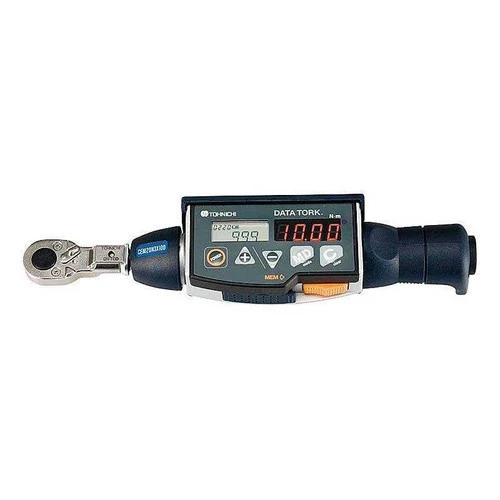

100-140 In Lbs / 10-50 Nm Tohnichi Interchangeable Head Digital Torque Wrench - CEM50N3X12D-G
Now:$1,181.04
MSRP:$1,306.20
(You save $125.16 )
- SKU:CEM50N3X12D-G
- Condition:New
- Range In Lbs:100 - 440
- Range Nm:10 - 50
- Feature:Interchangeable Head
- Accuracy:1%
Product Description
100-140 In Lbs / 10-50 Nm Tohnichi Interchangeable Head Digital Torque Wrench - CEM50N3X12D-G
Features
- Industrial Grade Digital Torque Wrench Ideal for Quality Inspections
- Robust and durable aluminum body.
- Two Mode Selection: Measuring Mode for quality inspections of already tightened fasteners or Tightening Mode for applying torque
- Dual LED and LCD Displays
- LCD screen is viewable under the direct light, while LED screen is vivid in dark places.

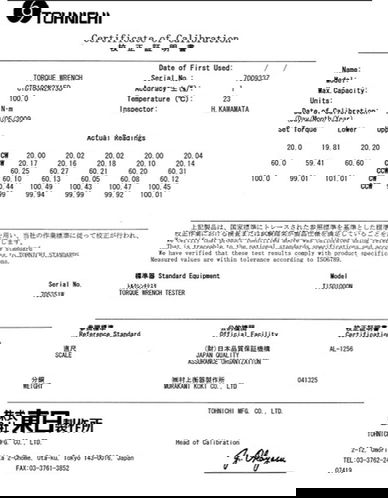

- Easily select unit of measure by keypad. Certificate supplied in SI units.
- 999 Data Memory Capacity with torque value, time/date stamp, and count
- Automatic or Manual Save Modes
- Set up Menu Selection: Measuring/Tightening Mode, Unit of Measure, Clock, Date, Data Output, Baud Rate, Hi/Lo Judgments, Buzzer, Auto- reset timer
- Supplied with Interchangeable Ratcheting Square Drive Head. A variety of other head types are sold separately
- Includes Rechargeable Battery and Charger
- Export data with Cable (sold separately)
- Included with cable purchase is Excel Receiver Software that allows data to be transferred into an Excel® Spreadsheet. (*Note: Excel® is a registered trademark of the Microsoft Corporation).
- Bluetooth Models Also Available: See Model CEM3-G-BT
- With CE mark. For international use including the EU region.
- Ergonomically designed and adapted for Color Vision Deficiencies (Tohnichi Unified Design).
- Applicable for international use including the EU region.
- Compliant with calibration procedures of ISO 6789 Type I Class C.
Specifications
|
Accuracy ±1% |
|||||
| MODEL | CEM50N3X12D-G | ||||
| TORQUE RANGE | MIN.~MAX. | 10~50 | |||
| [N • m] | 1 DIGIT | 0.05 | |||
| TORQUE RANGE | MIN.~MAX. | 100~500 | |||
| [kgf • cm] | 1 DIGIT | 0.5 | |||
| TORQUE RANGE | MIN.~MAX. | 1~5 | |||
| [kgf • m] | 1 DIGIT | 0.005 | |||
| TORQUE RANGE | MIN.~MAX. | 100~440 | |||
| [lbf • in] | 1 DIGIT | 0.5 | |||
| TORQUE RANGE | MIN.~MAX. | 7.5~36 | |||
| [lbf • ft] | 1 DIGIT | 0.05 | |||
| MAX. HAND FORCE [N] | 196.9 | ||||
| DIMENSION | EFFECTIVE LENGTH (L) | 254 | |||
| [mm] | OVERALL LENGTH (L') | 282 | |||
| HEAD (d3) | 12 | ||||
| WEIGHT [kg] | 0.58 | ||||
| INTERCHANGEABLE HEAD | (SH,RH,QH,RQH,DH,HH) | ||||
| 12D | |||||
| DISPLAY | 7 segments LED 4 lines 10 mm | |
| 14 segments LCD 6 lines 7 mm | ||
| 7 segments LED 4 lines 3 mm | ||
| Battery Life Indicator ( 4 steppes ) | ||
| Judgment LED RED / BLUE | ||
| MEMORY | 999 (M-2 mode: 99 data) | |
| COMMUNICATION FUNCTIONS | RS232C ( 2400-19200 bps ) | |
| Serial output corresponding to a USB connector | ||
| POWER SUPPLY | Ni-MH rechargeable battery | |
| CONTINUOUS USE | Approx. 20 hrs with fully charged ( 8 hrs by 1 hrs recharging ) | |
| RECHARGING TIME | Approx. 3.5 hrs | |
| OPERATION TEMPERATURE[°C] | 0~40 no condensation | |
| BASIC FUNCTION | Peak Hold | |
| Peak Data Memory with date and time | ||
| Auto Memory & Resetting | ||
| Tightening Completion Buzzer | ||
| Judgment of Measured Data | ||
| Auto Zero setting | ||
| Auto power off ( 3 min ) | ||
| Clock | ||
interchangeable Heads Available For This Wrench:
 |
 |
 |
 |
 |
 |
 |
Made in Japan
