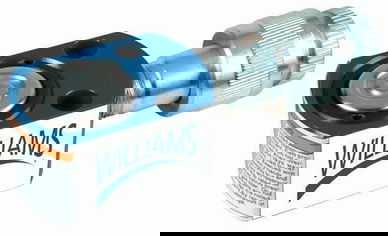

5 Ton 3/8'' Williams Flat Body Cylinders - 6CF05T03

The 6CF05T03 3/8'' Williams 5T Flat Body Cylinders - 6CF05T03 comes with the Williams Industrial Brands Limited lifetime warranty.

5T Flat Body Cylinder

Features

• Made of high quality steel
• Extremely low collapsed height for applications with minimal clearance at the lift point
• Great for areas of low clearance
• Maximum working pressure: 10,000 psi / 700 bar
• Country of Origin : Taiwan
• Cylinder Capacity (tons) : 5
• Stroke (in) : 0.24
• Cylinder Effective Area (in2) : 1.10
• Pressure at Capacity (psi) : 9,090
• Oil Capacity (in3) : 0.26
• Collapsed Height A (in) : 1.26
• Extended Height B (in) : 1.5
• Outside Dim. D1 x D2 (in) : 2.4 x 1.6
• Cylinder Bore Dia. C (in) : 1.18
• Plunger Dia. E (in) : 0.98
• Base to Port G (in) : 0.69
• Plunger to Base L (in) : 0.80
• Plunger to Mtg. Hole M (in) : 0.87

DIMENSIONS
Hole Pitch X (in)	Hole Dia Y (in)	Counter Bore Dia. (in)	Counter Bore Depth (in)
1.12	0.2	0.31	0.17
